7-Port USB Hub for Raspberry Pi

• USB hub for Raspberry Pi
• Compatible with all versions of Raspberry Pi
• Can be easily mounted under your Raspberry Pi
• 7 digital output pins on board
• Two detachable pogo pins are included in the package
• Allows user to turn on/off the power of USB ports, with software or external switch

The 7-Port USB Hub for Raspberry Pi is a hub designed for Raspberry Pi. It extends one USB port on Raspberry Pi to 7 usable USB ports, which allows you to connect much more USB devices to your Raspberry Pi.

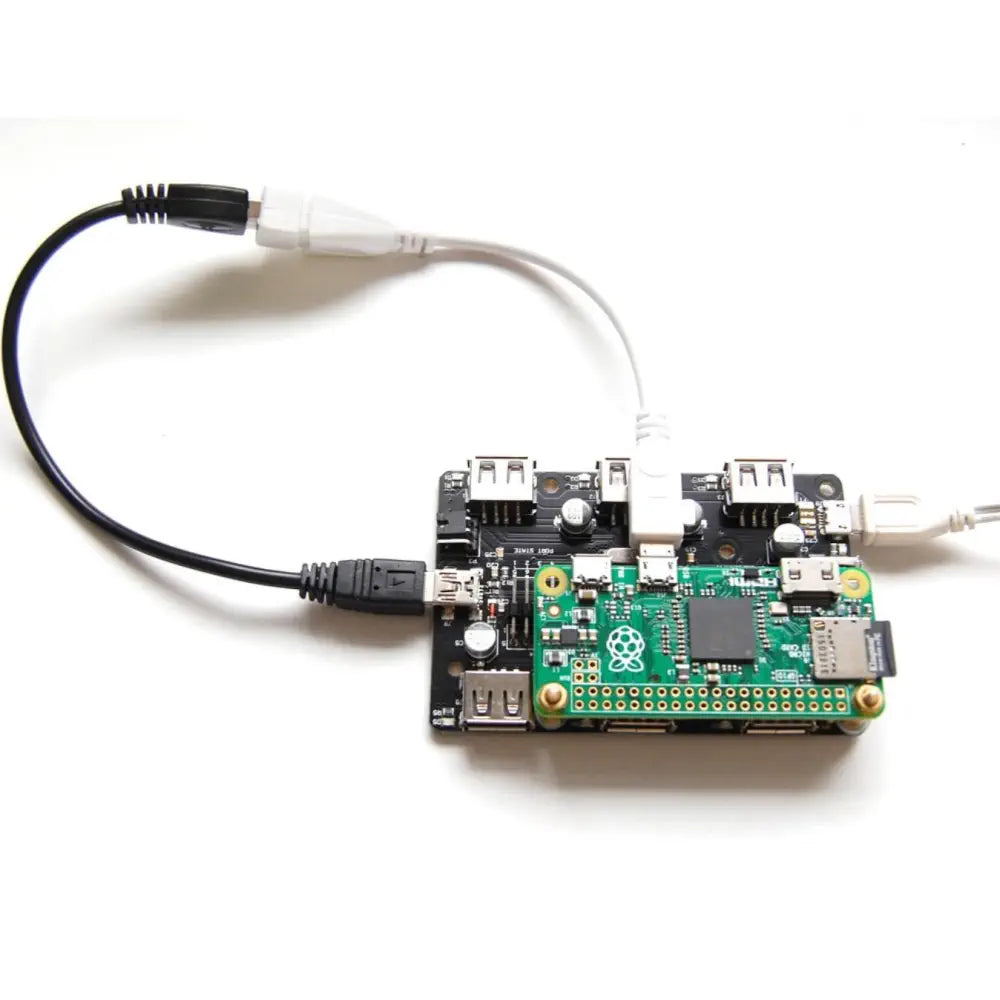

This USB hub is compatible with all versions of Raspberry Pi, including the old A/B model, A+/B+ model, compute module (with development kit), Raspberry Pi 2 (B model), Raspberry Pi Zero and Raspberry Pi 3 (B model).

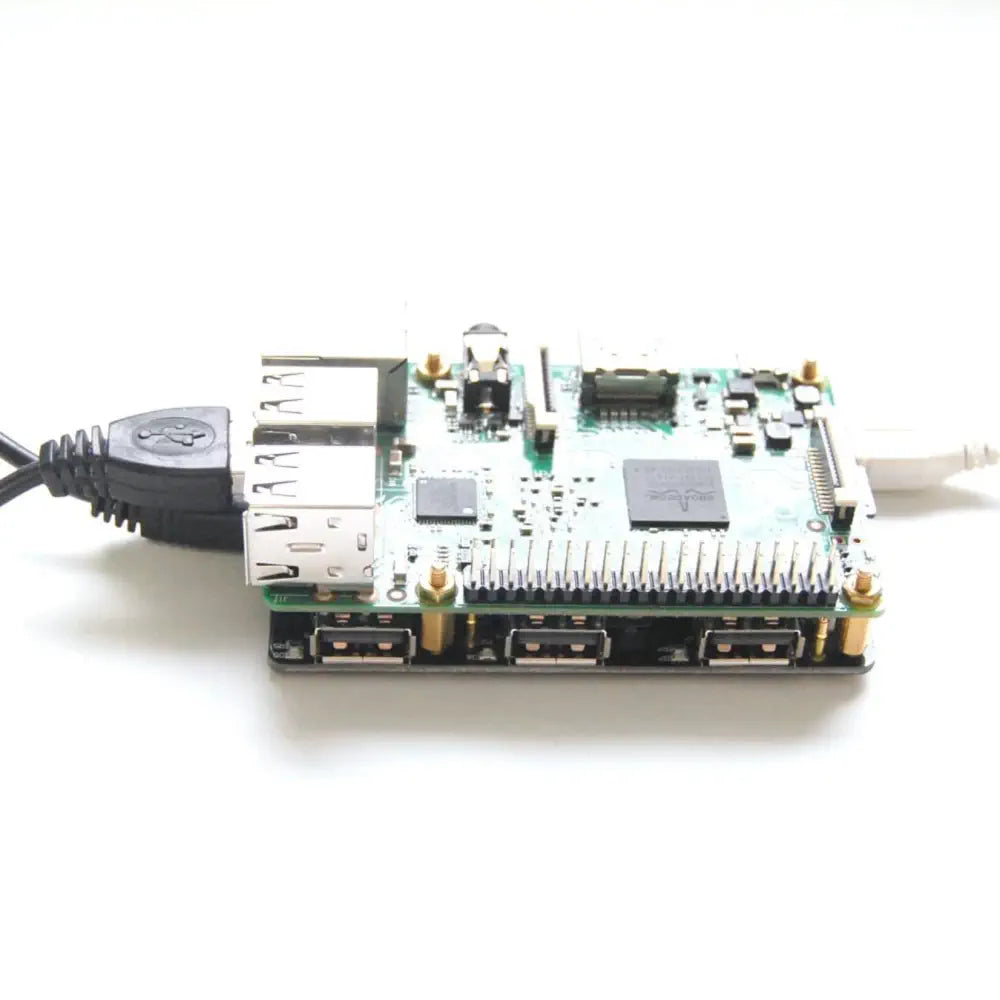

The board size of this USB hub is the same with Raspberry Pi B+ or Raspberry Pi 2 (B model). The old Raspberry Pi A and B model also have the same size, except that they don’t have those rounded corners. This USB hub has 6 mounting holes at correct positions and could be mounted under any Raspberry Pi model except the compute module. For different models of Raspberry Pi, this USB hub uses different approaches to (optionally) back-power the Raspberry Pi, which significantly simplifies your wiring and allows you to power both the USB hub and Raspberry Pi with only one power supply.
