Advanced Simulation Module Software

• NOTE: An email with the activation code will be sent within 5 to 7 working days after purchase.
• Advanced Simulation Module Software
• Features graph based simulation is akin to conventional SPICE simulation
• Extends the functionality of the basic simulator

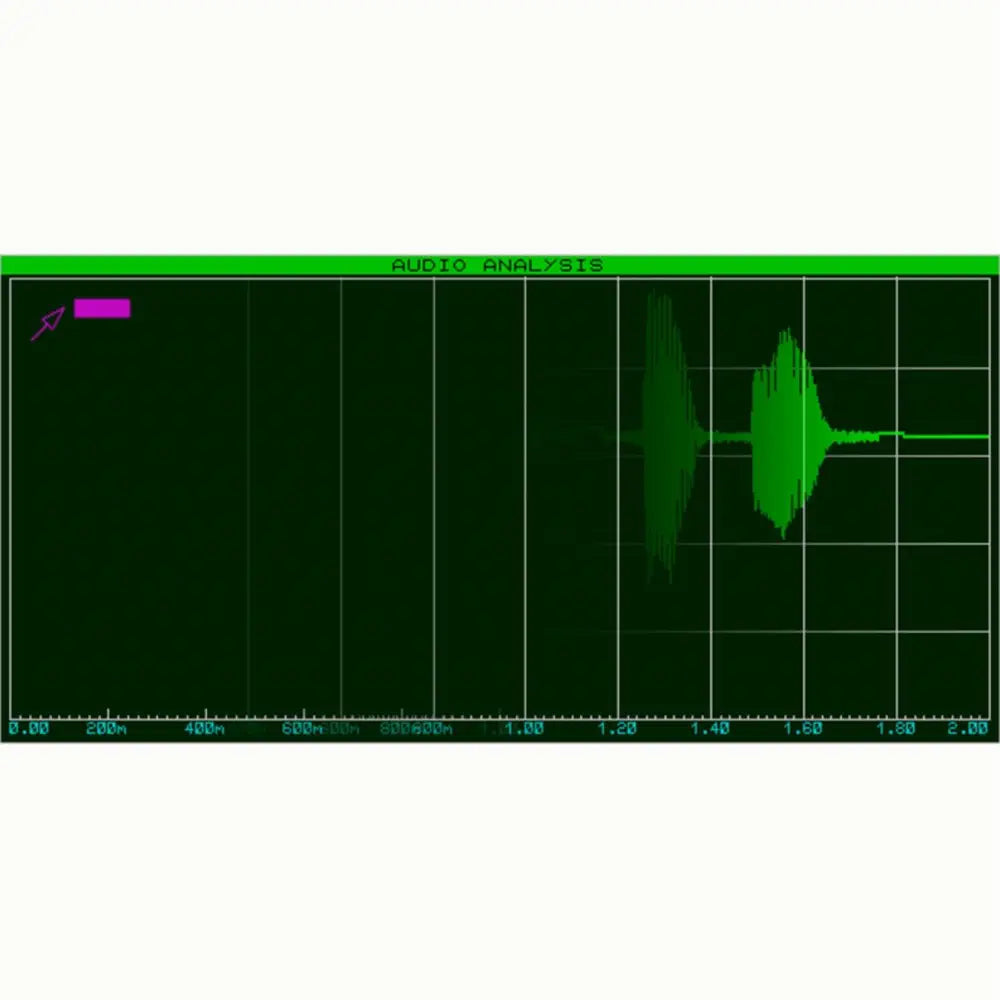

• Provides a full range of graph-based analyses

The Advanced Simulation Module Software option can be added to all Proteus PCB Design and Proteus VSM products including the Starter Kit.

It extends the functionality of the basic simulator to provide a full range of graph-based analyses. The Advanced Simulation Module is an advanced graphing add on that works with any of the VSM products.

Graph-based simulation is akin to conventional SPICE simulation where you first draw the circuit, set-up source generators, select points to be monitored and then run the simulator. When the simulation is complete the results are displayed and you analyze these at your leisure.

The Proteus Design Suite with the Advanced Simulation Features module makes this as effortless as possible. The Advanced Simulation Module provides a range of graph-based analyses to provide greater insight into circuit operation.

Note: The software includes a 6-Month USC (Update Service Contract)
