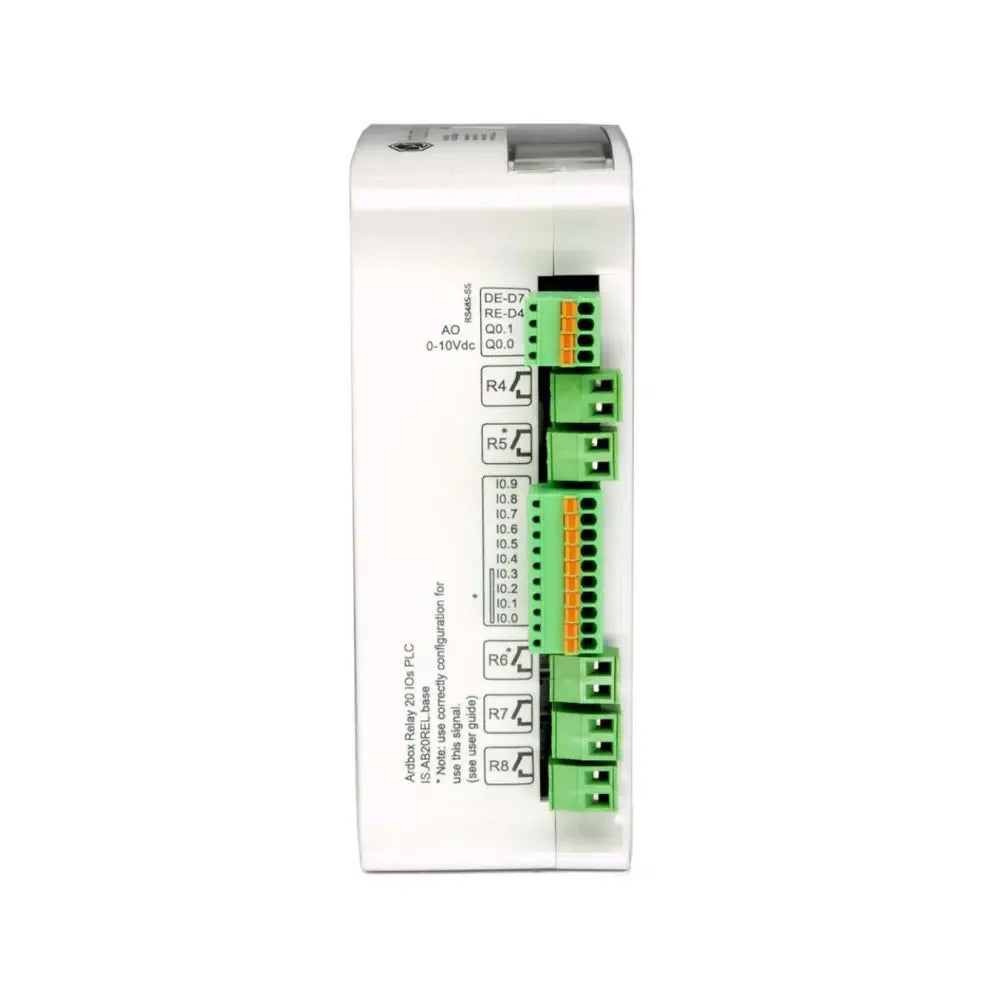

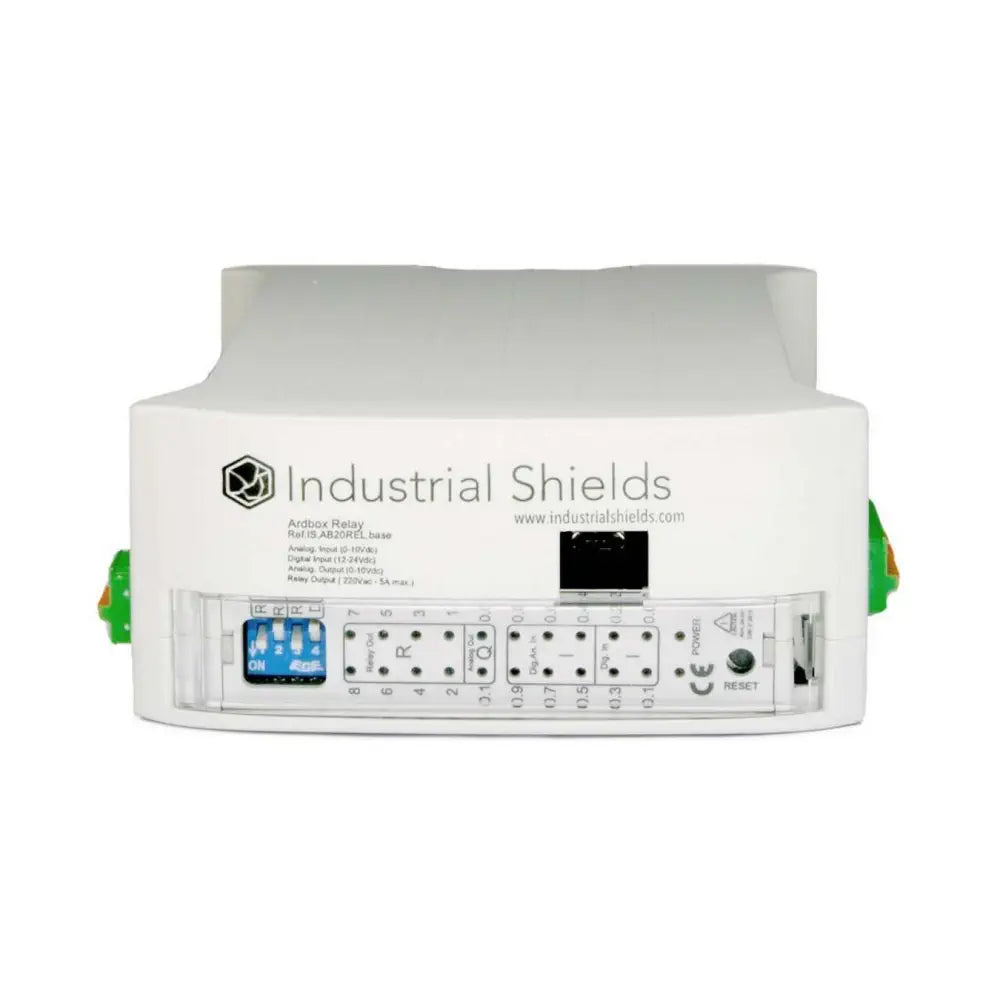

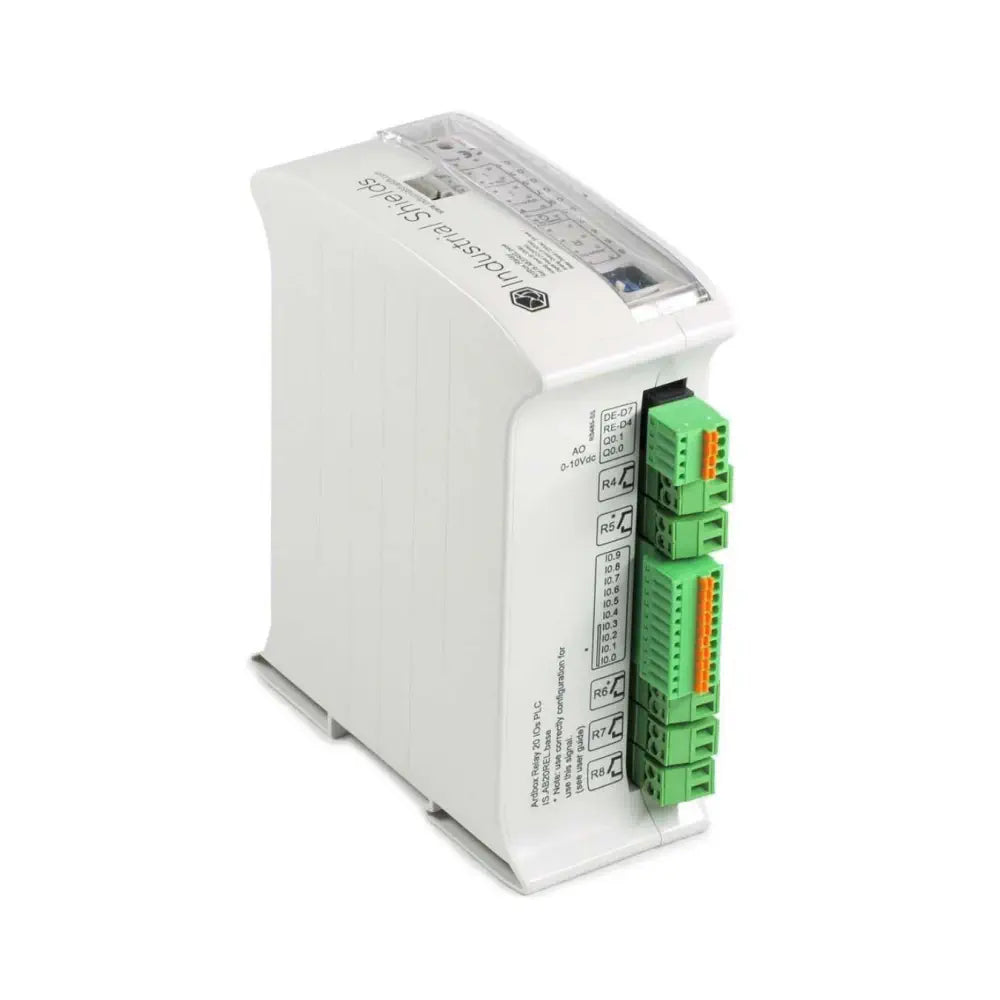

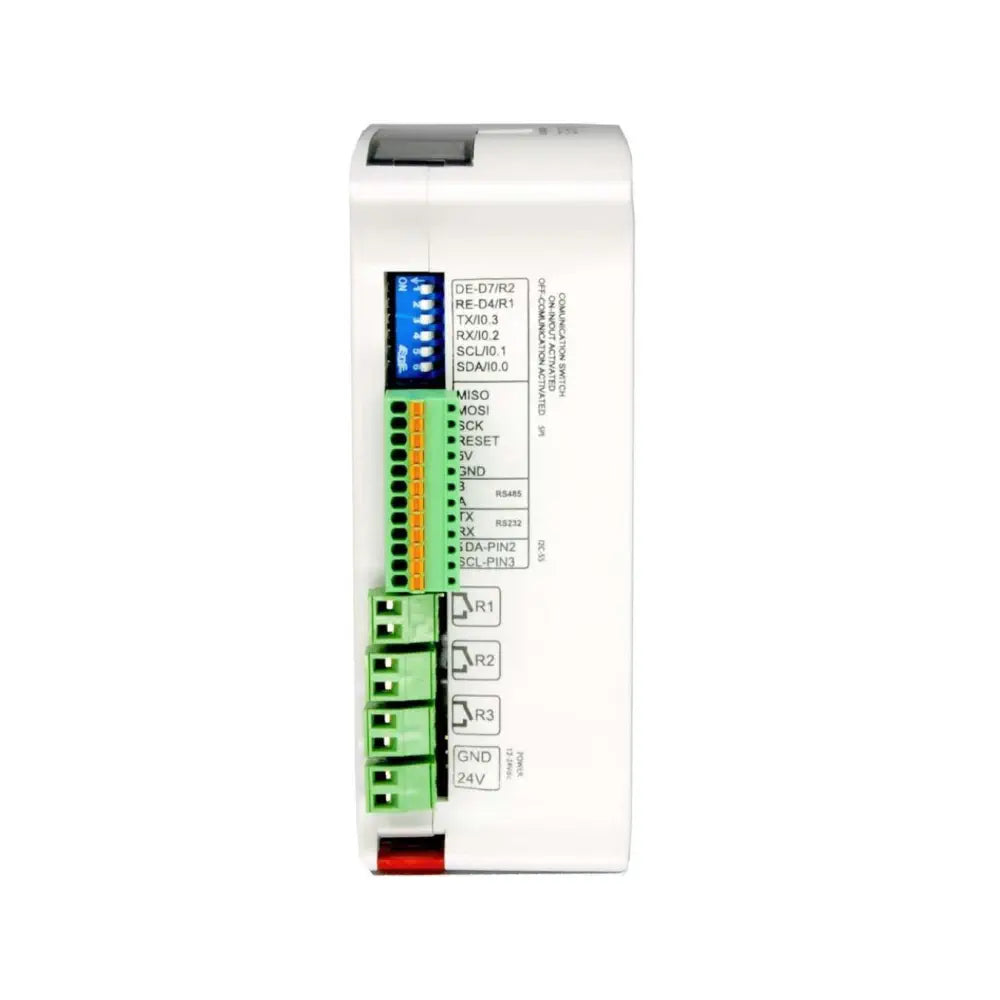

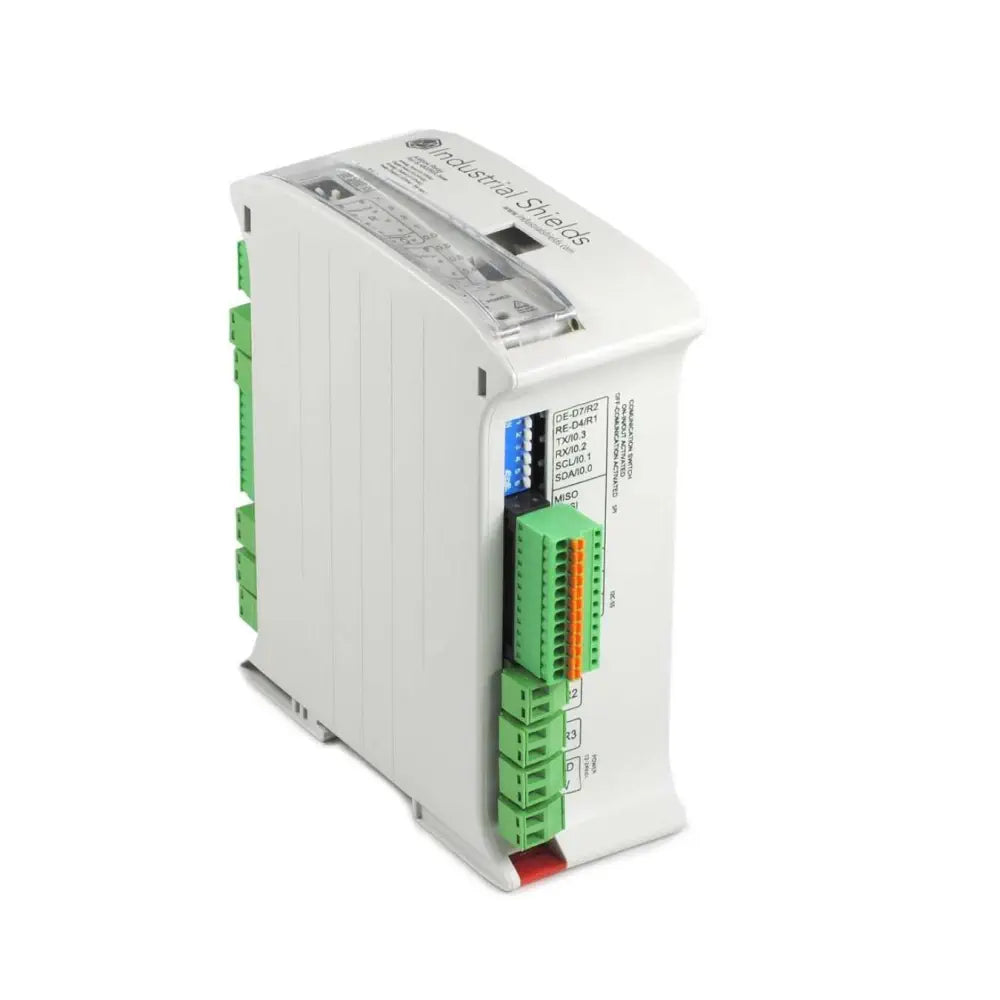

ARDBOX PLC 20 I/O Arduino HF Industrial Module w/ Relays
$173.46
Description
- 10 digital inputs, 8 Relay and 2 analog outputs
- 5-24Vdc Input Voltage
- Compact DIN rail mounting
- Com ports USB, RS485, I2C, SPI
The ARDBOX PLC 20 I/O Arduino HF Industrial Module w/ Relays has 20 inputs / outputs, 10 digital inputs, 8 digital outputs and 2 analog outputs. ARDBOX product family offers the possibility of communication between two computers using I2C obtaining a master-slave connection.
Instant connection and programming
The Basic Controllers family, as it uses an Arduino LEONARDO, lets you program it through the USB. This feature lets it an immediate access in order to program, maintain and prepare it for its set up. It lets you to control your equipment without no limits.
Standardized modules
The different ARDBOX family devices are programmed exactly on the same way. Once you have used one of them, the rest can be configured on using the same methodology.
- 1 x USB port
- 1 x RS-485 (Half-Full Duplex)
- 1 x I2C (you need a pull up accessory)
- 1 x SPI
- Arduino Leonardo Included
- Instant connection and programming
- Standardized modules
- It is Expandable
- All the components are configurable
Inputs:
- (10x) Digital (5-24Vdc)
- (6x) of 10x, Analog (0-10Vdc) configurable by Software
Outputs:
- (8x) Relay outputs (220Vac – 5A)
- (2x) Analog outputs (0-10Vdc)
- Communications
- (1x) USB port.
- (1x) RS-485 (Half-Full Duplex)
- (1x) I2C (you need a pull up accesori)
- (1x) SPI
