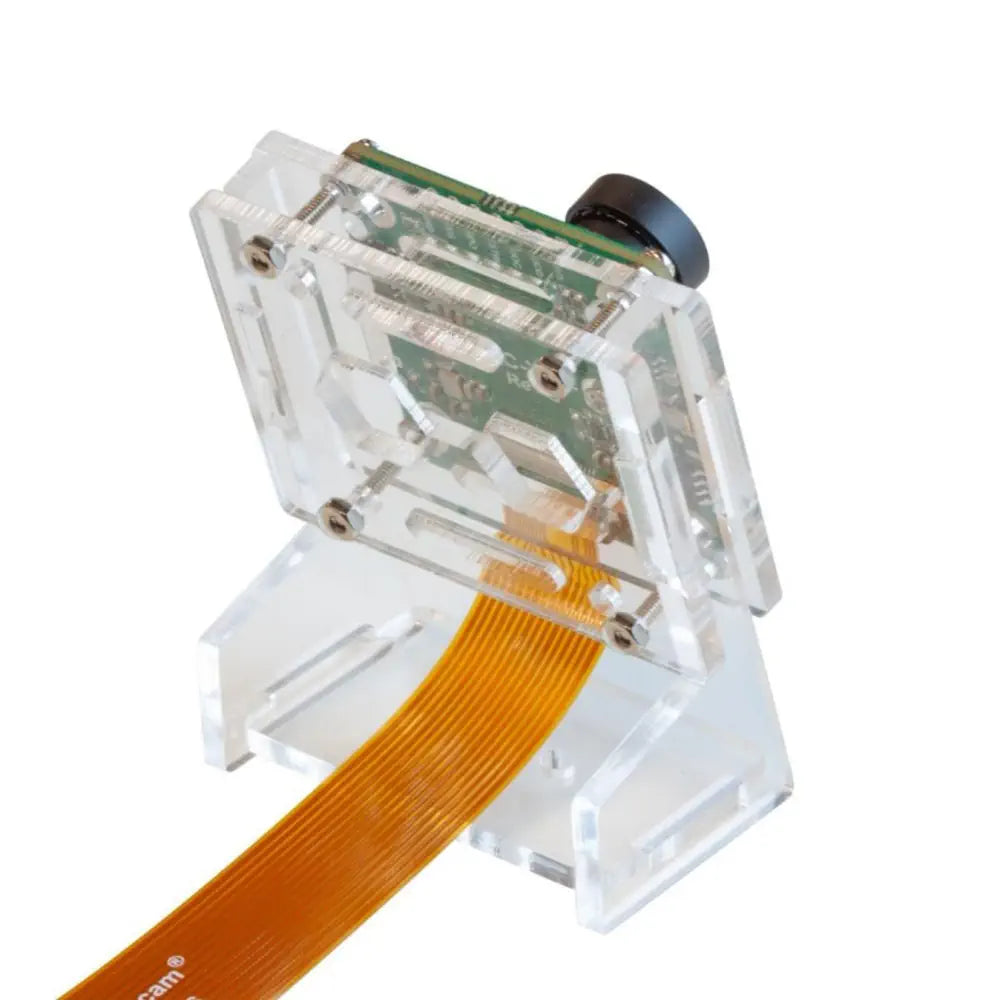

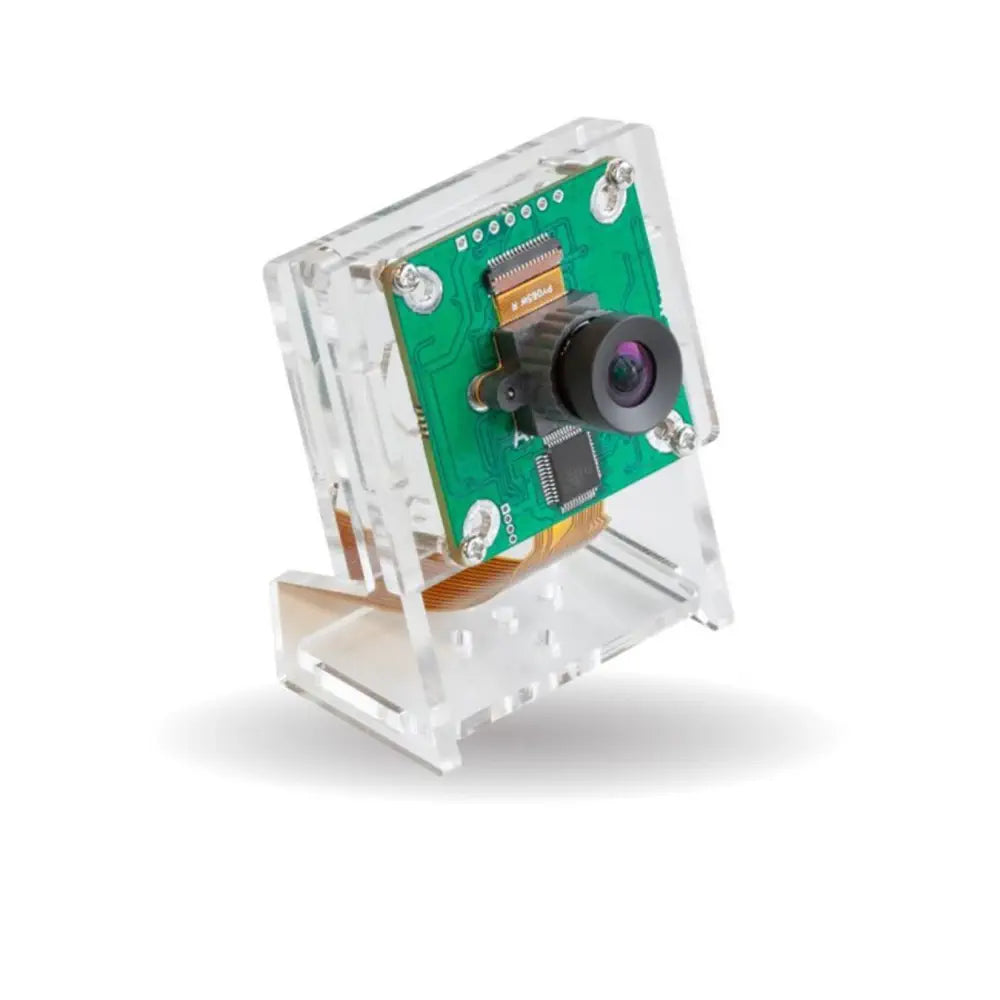

Arducam 2MP Global Shutter OV2311 Mono Camera Module
$133.09
Description
- Arducam 2MP Global Shutter OV2311 Mono Camera Module
- Adopts a 1/2.9-inch 2MP Global Shutter sensor
- Offers an Arducam adapter board
- Assembled with a Low distortion lens
- Output interface: 2-lane MIPI
- Sensor: Global Shutter OV2311 Monochrome
The Arducam 2MP Global Shutter OV2311 Mono Camera Module is a new member of the Arducam Pivariety series, which adopts a 1/2.9 inch 2MP Global Shutter sensor OV2311, assembled with a Low distortion lens.
Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users have been limited to using the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.
- 1x Arducam 2MP OV2311 ISP Camera Module
- 1x Arducam adapter Board
- 1x 150mm 15pin 1.0mm FPC cable
- 1x Acrylic case kit with assembly accessories
Size
- Sensor Optical Format size: 1 / 2.9 inch
Sensor
- Sensor: Global Shutter OV2311 Monochrome
- Pixel size: 3 µm x 3 µm
- Active array size: 1600 x 1300
- Support for sensor frame rate: 1600 x 1300 at 60fps, 1600x 1080 at 80fps, 1280 x 720 at 120fps
- Support for ISP frame rate: 1600 x 1300 at 30fps, 1600 x 1080 at 30fps, 1280 x 720 at 60fps
- Input clock frequency: 6 ~ 27 MHz
- Max S/N ratio: 37.4 dB
- Dynamic range: 68 dB
Lens
- Lens Thread: M12 x 0.5P
- Field of View (FoV): 83°(H)
- IR Sensitivity: without IR Filter, IR sensitive
Camera Module
- Output interface: 2-lane MIPI
- Output formats: RAW 8/10 bit
- Minimum exposure time: 1-row period (11.3us at the resolution of 1600×1300 on Raspberry Pi)
