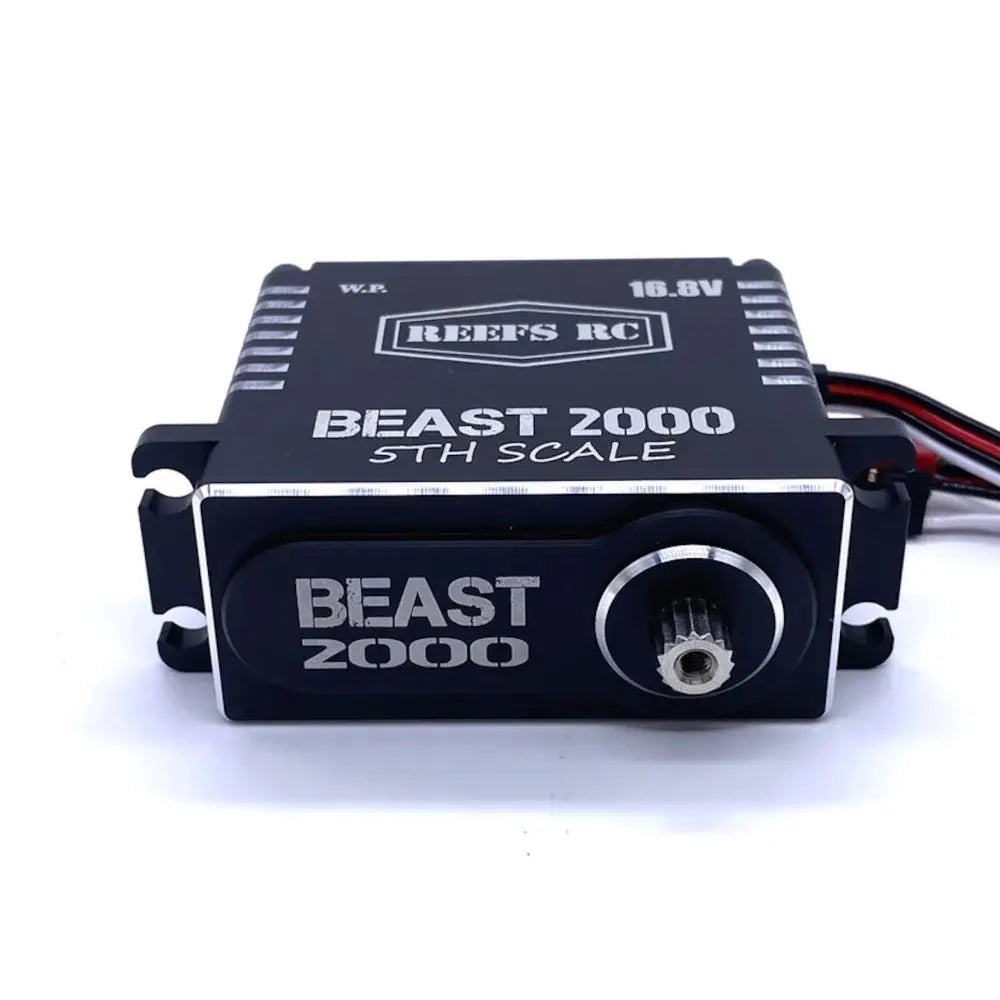

Beast 2000 1/5th Scale Servo

• High Torque High Speed Brushless Servo
• INCLUDES: REEFS SINGLE HORN / REEFS DOUBLE HORN / 3S & 4S CONNECTOR
• SUBMARINE WATERPROOF: 7 Point Seals, Magnetic Angle Sensor
• Pulse Width Modulation Control, Voltage 7.4V – 16.8V, Mechanical Angle: No Limit
• Internal: Steel Gears / All CNC Aluminum Casing, Bearing Type: 5 Ball Bearings /

Torque: 1000oz @ 10v/ 1250oz @11.1v/ 1450oz @12v / 2000 @ 16.8v

Speed: .10sec @10v/.11sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v

Spline: 15T / Dead Band Width: 2uSec

Hardware Included:

(1) Servo Horn Screw 3.5x8mm

(3) 3x16mm Cap Head Screws for end of horns.

(4) 2mm Horn Clamping Cap Head Screws

Load Current:

7700 mA @ 10.0V

8300 mA @ 11.1V

9200 mA @ 12.0V

10600 mA @ 14.4V

11000 mA @ 16.0V

Unload Current:

950 mA @ 10.0V

1000 mA @ 11.1V

1060 mA @ 12.0V

1200 mA @ 14.4V

1300 mA @ 16.0V
