DFRobot Gravity NO2 Sensor (Calibrated) – I2C & UART
Original price was: $185.01.$173.88Current price is: $173.88.
Description
- DFRobot Gravity NO2 Sensor (Calibrated) – I2C & UART
- Offers high stability and high sensitivity
- Detects Nitrogen Dioxide (NO2) gas
- Strong anti-interference ability
- Supports three output modes analog, I2C, and UART
- Working Voltage: 3.3 ~ 5.5 V DC
The DFRobot Gravity NO2 Sensor (Calibrated) – I2C & UART detects nitrogen dioxide concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of Nitrogen Dioxide in the environment. Can be widely used in the detection of Nitrogen Dioxide in industrial and environmental protection fields.
The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years.
The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, and Raspberry Pi. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a Nitrogen Dioxide concentration detector.
DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, and HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

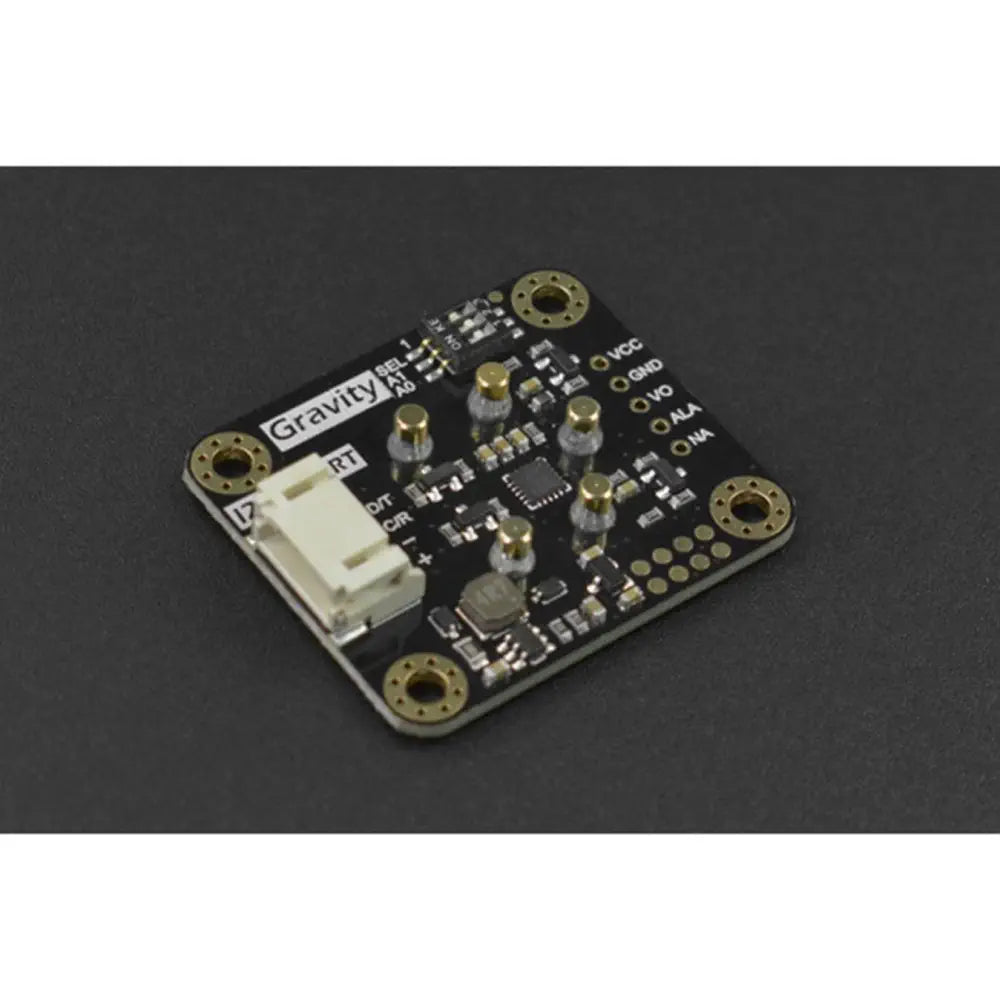

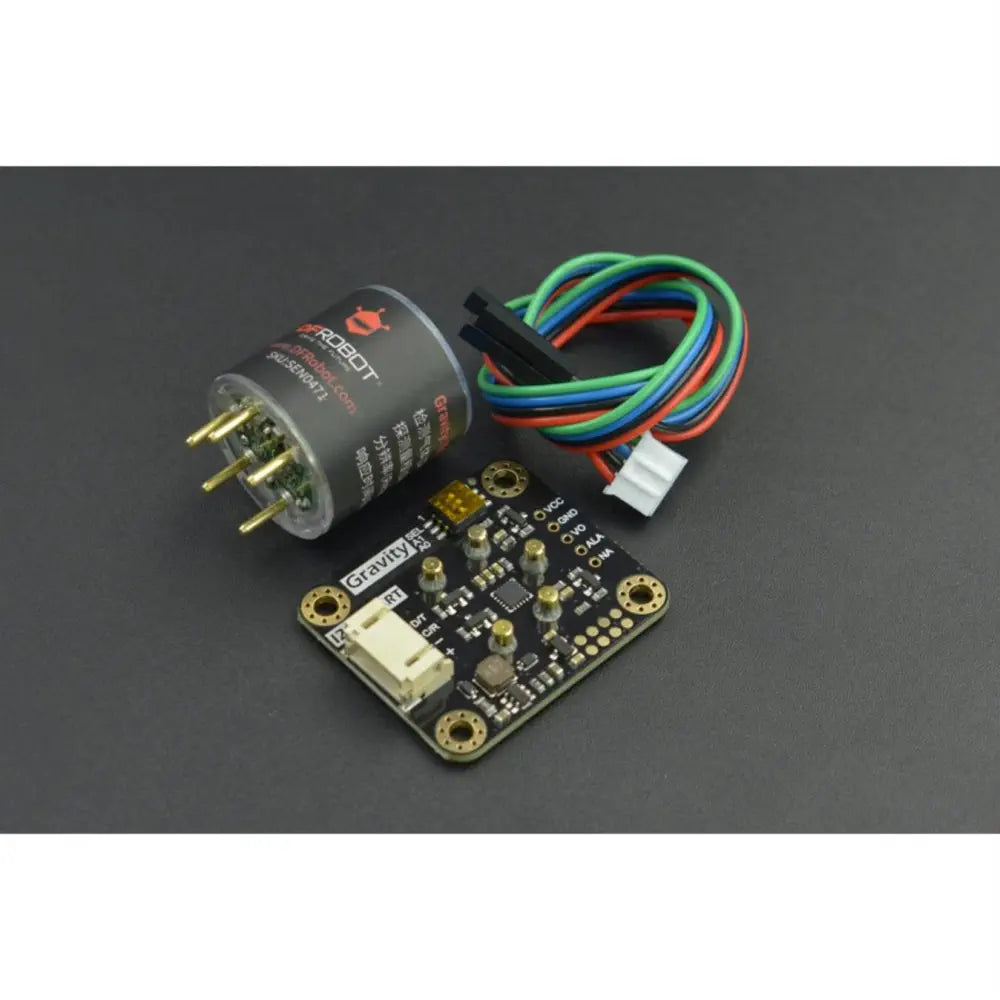

- 1x Gravity NO2 Signal Conversion Board
- 1x NO2 sensor probe
- 1x Gravity 4-Pin Cable
Size
- Adapter plate size: 37 x 32 mm
- Detection Gas: Nitrogen Dioxide (NO2)
- Detection range: 0 ~ 20 ppm
- Working Voltage: 3.3 ~ 5.5 V DC
- Working Current: < 5 mA
- Output Signal: I2C, UART (0 ~ 3V), analog voltage
- Working Temperature: -20 ~ 50 °C
- Working Humidity: 15 ~ 90 % RH (non-condensing)
- Storage Temperature: -20 ~ 50 °C
- Storage Humidity: 15 ~ 90 % RH (non-condensing)
- Lifespan: >2 years (in the air)
- Compatibility: Arduino, ESP32, Raspberry Pi
