DFRobot I2C / TWI 4×20 LCD Module
$29.65
Description
- Cool LCD display with a high speed I2C serial bus
- Number of characters: 20 characters x 4 Lines
- Compatible with both Gadgeteer, Arduino DUE and Arduino UNO/Mega
- Blue LED backlight with white char color

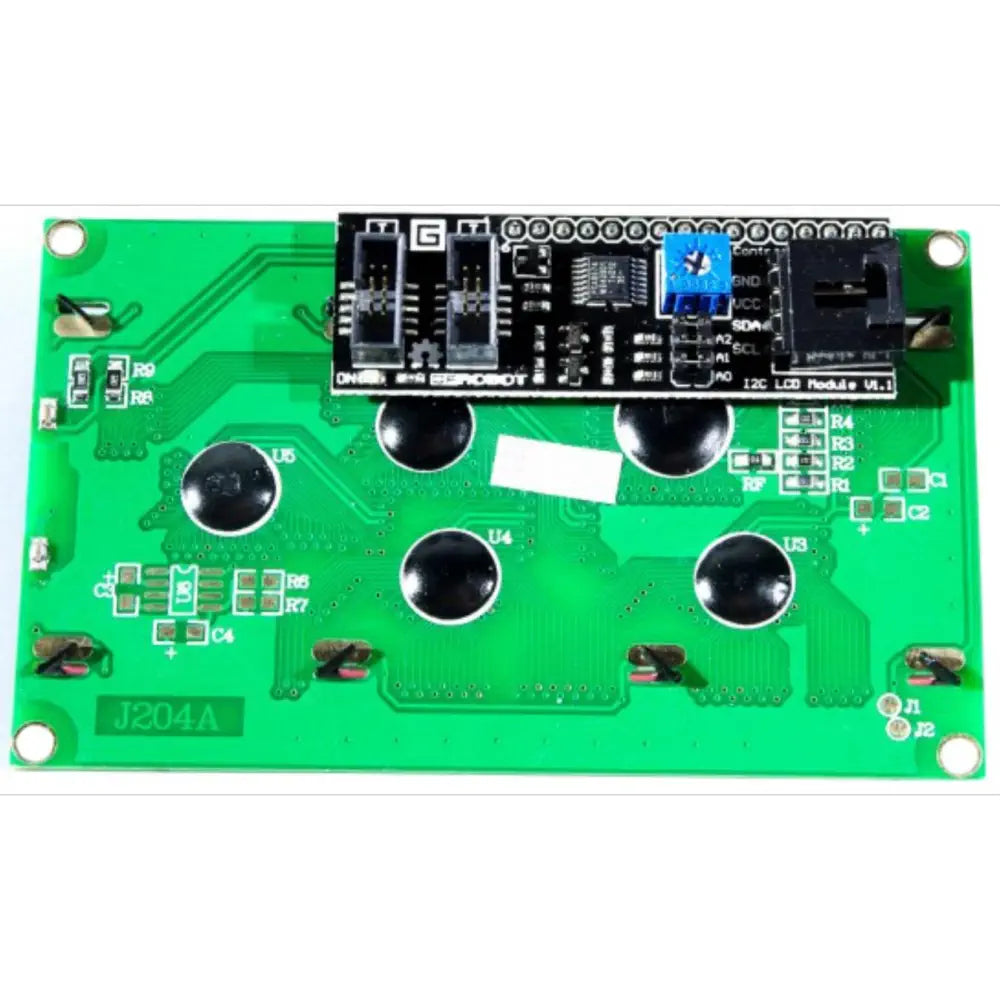

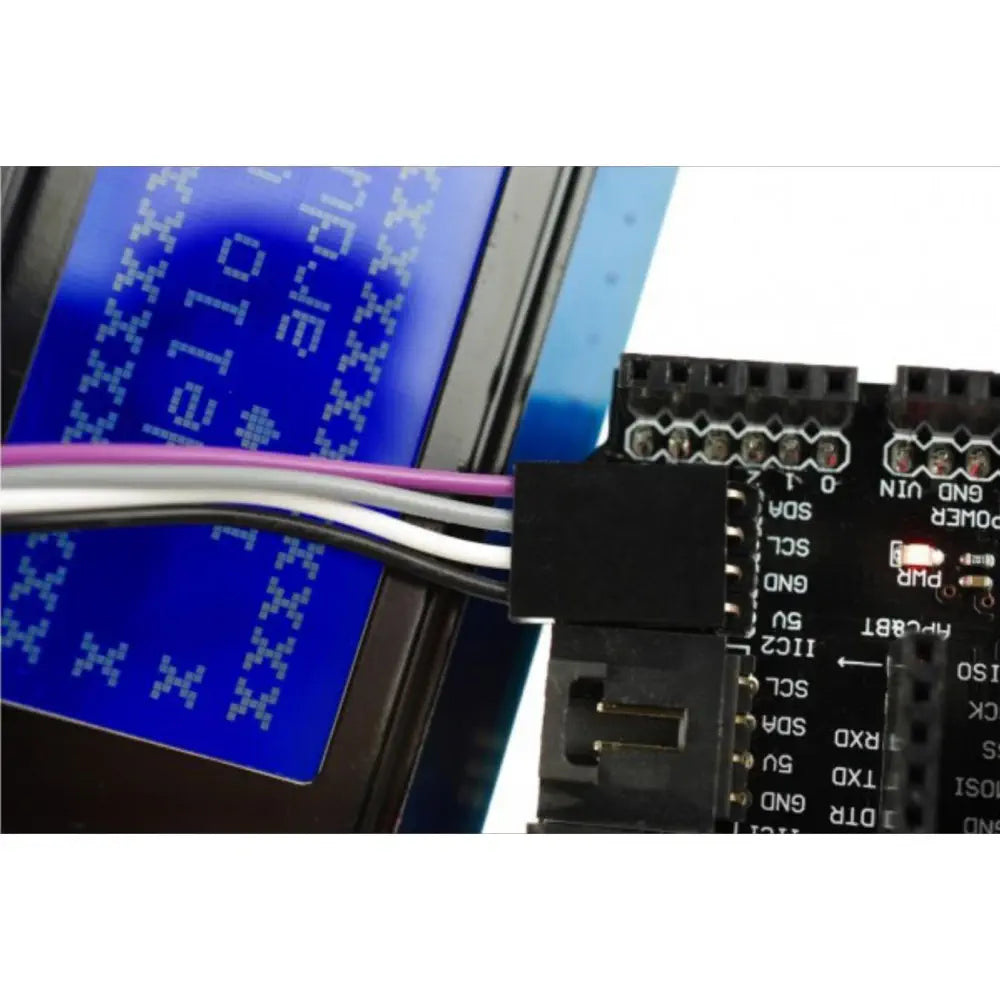

The DFRobot I2C / TWI 4×20 LCD Module is compatible with Gadgeteer and features a cool LCD display with a high speed I2C serial bus. With the limited pin resources, your project may be out of resources using normal LCD shield. The LCD display is a 4×20 character STN white display with a blue LED backlight. With this I2C interface LCD module, you only need 2 lines (I2C) to display the information. Fantastic for Arduino based project. This board is able to be powered by 5V or 3.3V which make it compatible with both Gadgeteer, Arduino DUE 3.3V system and standard Arduino UNO/Mega 5V system.
- Size: 98 x 60 x 24mm
ZIP File
- I2C Address: 0x20-0x27 (0x20 default)
- Interface: IIC/TWI x1, IDC10 x2
- View direction: Wide viewing angle
- Dot size: 0.55 x 0.55mm
- Dot pitch: 0.60 x 0.60mm
- Character size: 2.96 x 4.75mm
- Character pitch: 3.55 x 5.35mm
