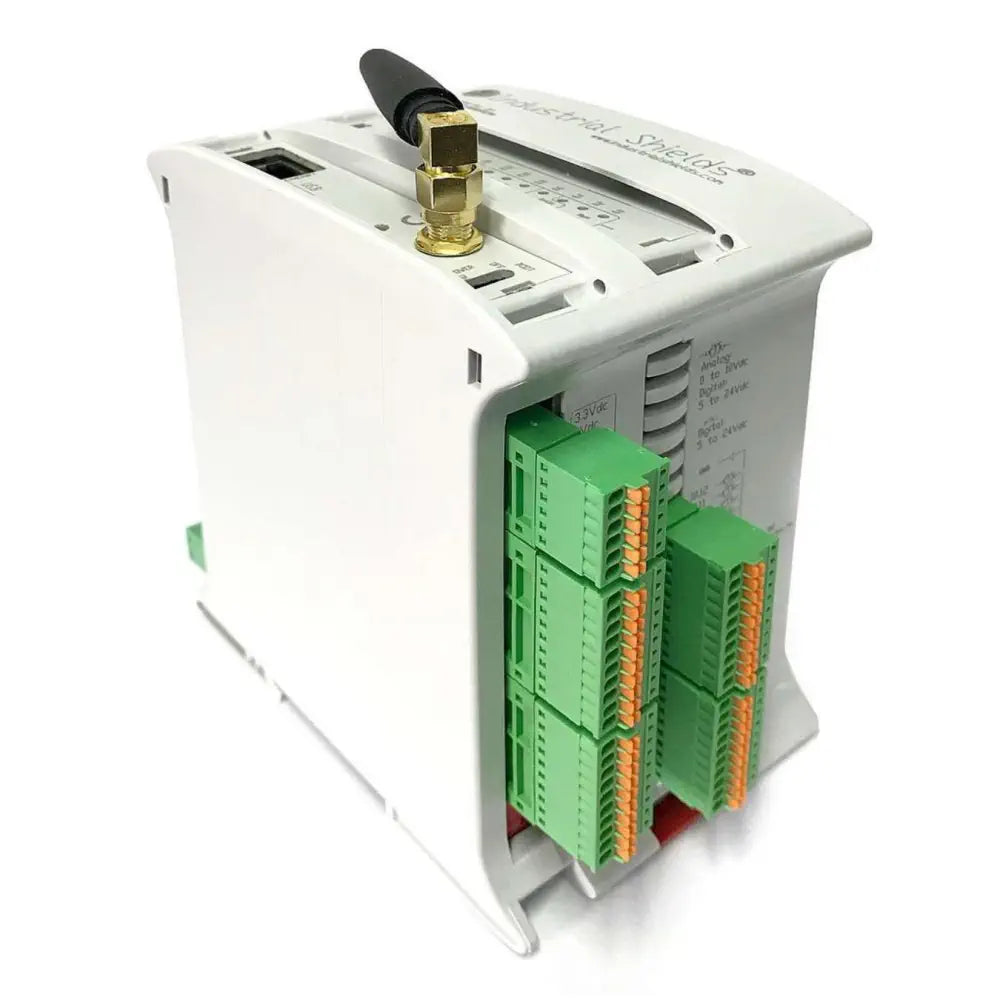

ESP32 Ethernet, Wifi, Bluetooth PLC w/ 38AR I/Os Analog/Digital Plus

• 1 x ESP32 Ethernet, Wifi, Bluetooth PLC w/ 38AR I/Os Analog/Digital Plus

Size

• 101 x 119.5 x 70.1 mm (L x W x H)

• Device: PLC
• CPU: ESP32
• Max. Consum.: 1.2 A
• Power Supply Voltage (Vdc) Range: 12-24
• Power Consumption (VAC max.): 30
• Operating Temperature C: 0 – 60 °C
• Operating Temperature F: 32 – 140 °F
• Operating Relative Humidity % (no condensation): 10 – 90%
• Moisture Sensitivity Level (MSL): MSL 1 – Unlimited

Inputs

• Total Inputs: 19
• Total Digital Optoisolated Inputs (7 – 24 Vdc): 9
• Digital Optoisolated Inputs (7 – 24 Vdc): 5
• Digital Optoisolated Inputs (7 – 24 Vdc) | can work like interrupt Inputs INT (7 – 24 Vdc): 4
• 10-bit Analog Inputs (0 – 10 V) | Digital (5 – 24 Vdc) Inputs configurable by software: 10

Outputs

• Total Outputs: 19
• Digital Optoisolated Outputs (5 – 24 Vdc): 5
• Digital Optoisolated and PWM (5 – 24 Vdc) | 8-bit Analog (0 – 10 V) Outputs configurable by switch: 6
• Relay Outputs (220 Vac – 5 A): 8

Communication

• Ethernet communication: 1
• Wi-Fi & BLE (Bluetooth Low Energy): Yes
• GPRS/GSM: No
• USB port (type B) communication (for uploading or debugging only): 1
• Micro USB port (type B) communication (for uploading or debugging only): 0
• I2C (3.3 Vdc) communication (interface with other Industrial Shields, sensors, I/Os modules): 1
• Serial TTL (UART) communication: No
• RS-232 communication: 1
• Half/Full-Duplex RS-485 communication: 1
• SPI (3.3 Vdc) external port communication (using MOSI, MISO, SS pins of Arduino): 1
• RTC (Real Time Clock. NOTE: I2C port used. See pinout modification): Yes
• µSD Socket (using SPI port, chip select D53 pin): Yes

Open Source Board CPU

• Single Board Computer (SBC) Microcontroller: ESP32 WROOM 32UE
• Flash Memory (MB): 4
• SRAM IN RTC (KB): 16
• SRAM (KB): 520
• Clock Speed (MHz): 40

• Weight: 554 g
