ESP32 Servo Driver Expansion Board, Built-In WiFi & Bluetooth

$19.35

Description

Description

  • ESP32 Servo Driver Expansion Board, Built-In WiFi & Bluetooth
  • Designed for serial Bus servos
  • Compact size and space-saving
  • Built-in WiFi and Bluetooth
  • Automatic download circuit for easy uploading programs
  • Allows controlling up to 253 SC
  • Open source web applications and various robot structures

The ESP32 Servo Driver Expansion Board, Built-In WiFi & Bluetooth is based on ESP32. It can control bus servos through the WEB application and features an on-board OLED screen.

It can be used to display key information and is suitable for robot projects such as robotic arms, hexapod robots, humanoid robots, wheeled robots, etc. that require feedback on the angle and load of the steering gear.

  • 1x Servo Driver with ESP32
  • 1x Screws pack

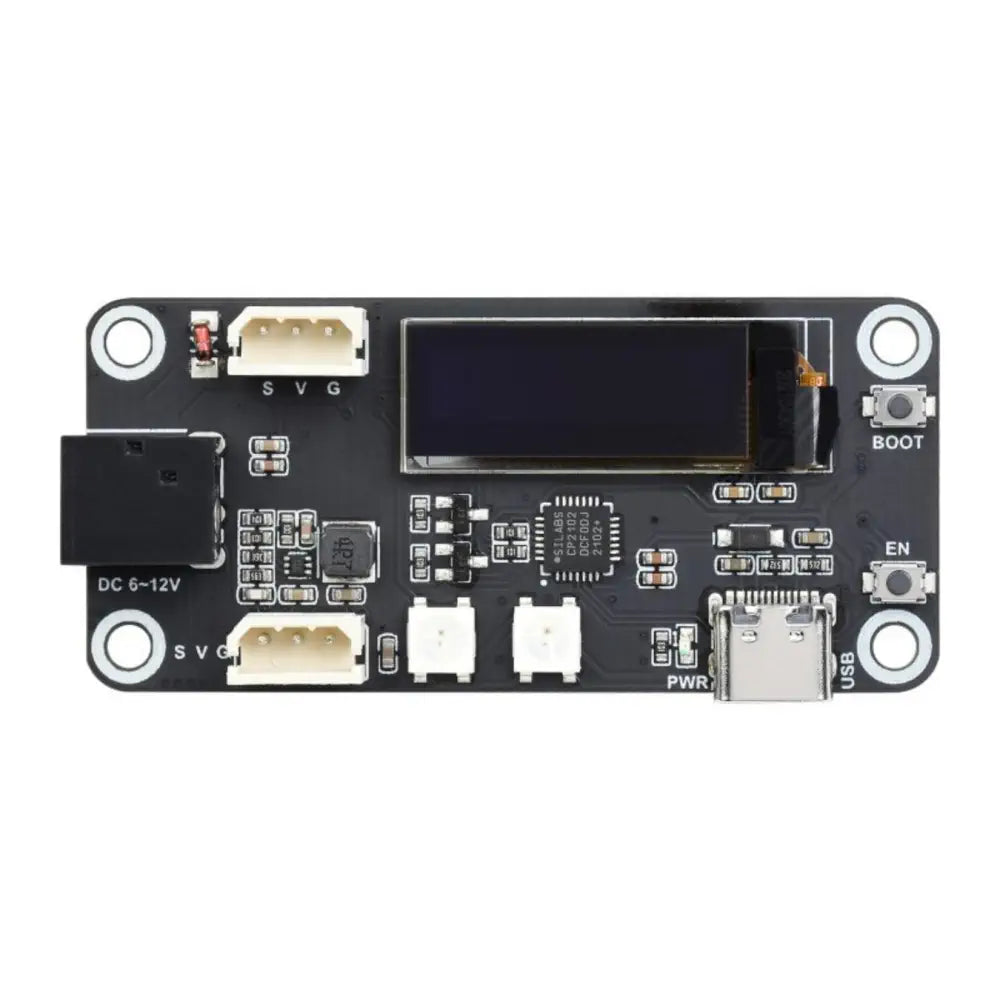

ESP32 Servo Driver Expansion Board, Built-In WiFi & Bluetooth - Click to Enlarge

Size

  • 65 x 30 mm (L x W)
  • Fixing hole diameter: 3 mm
  • Mounting hole size: 2.75 mm
  • Mounting hole spacing: 23 x 58 mm
  • Power supply connector: 5.5 x 2.1 mm

  • Supply voltage: DC 6 – 12 V (the input voltage and the servo voltage must be matched)
  • Controller: ESP32
  • Control interface: UART
  • WiFi and Bluetooth: Included
  • Download interface: Type-C
  • Power supply connector: DC
  • Weight: 0.021 kg
