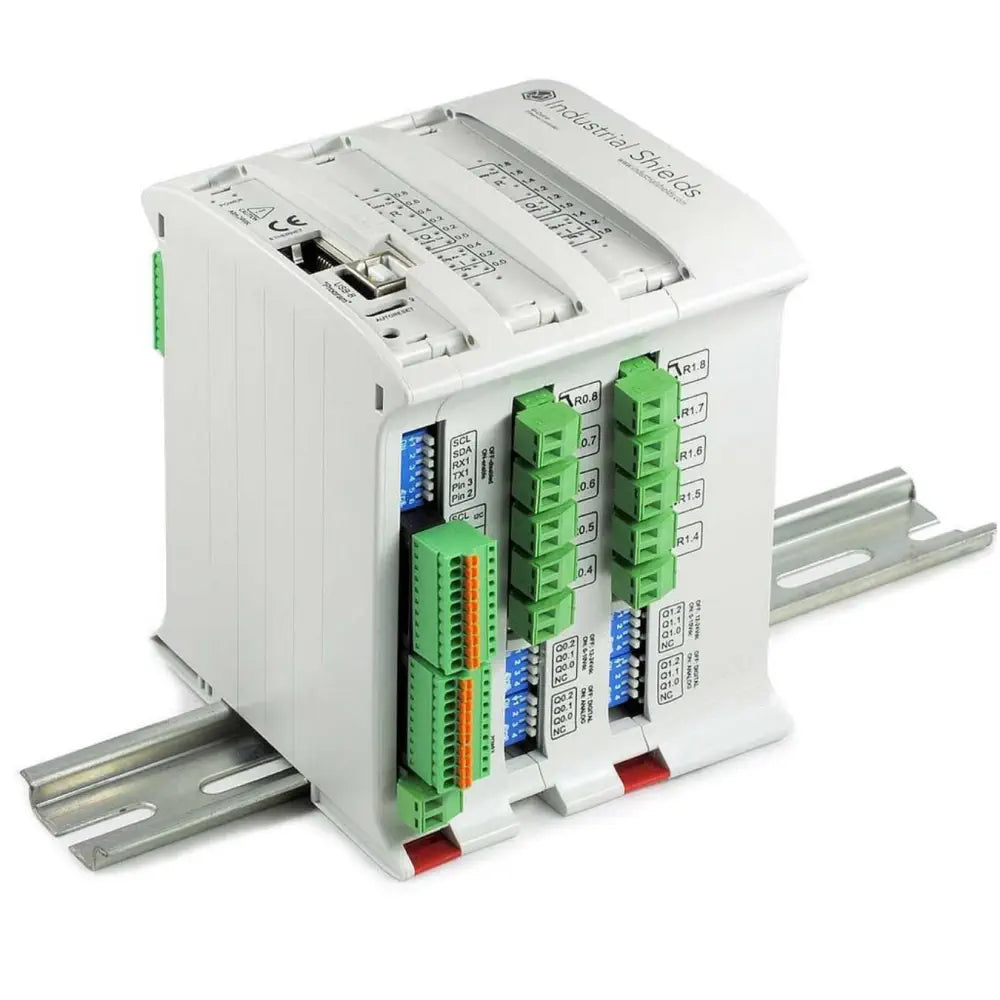

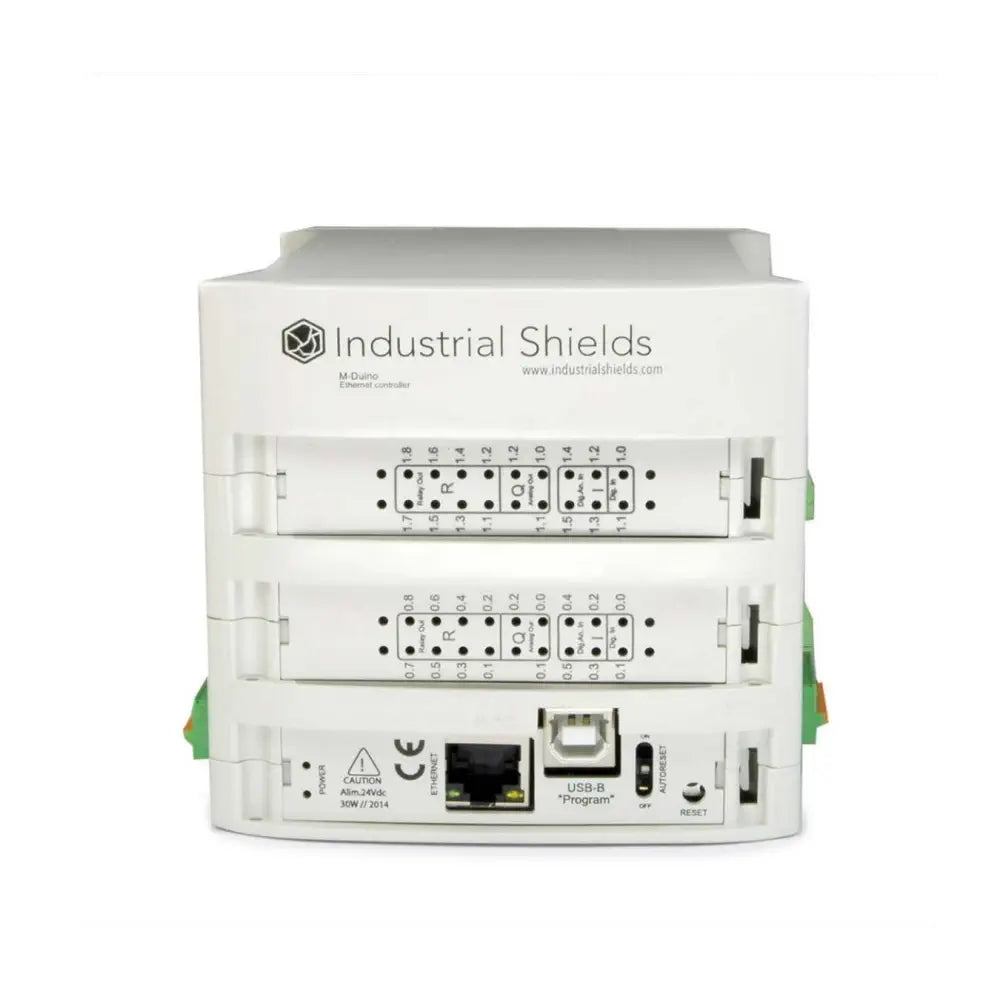

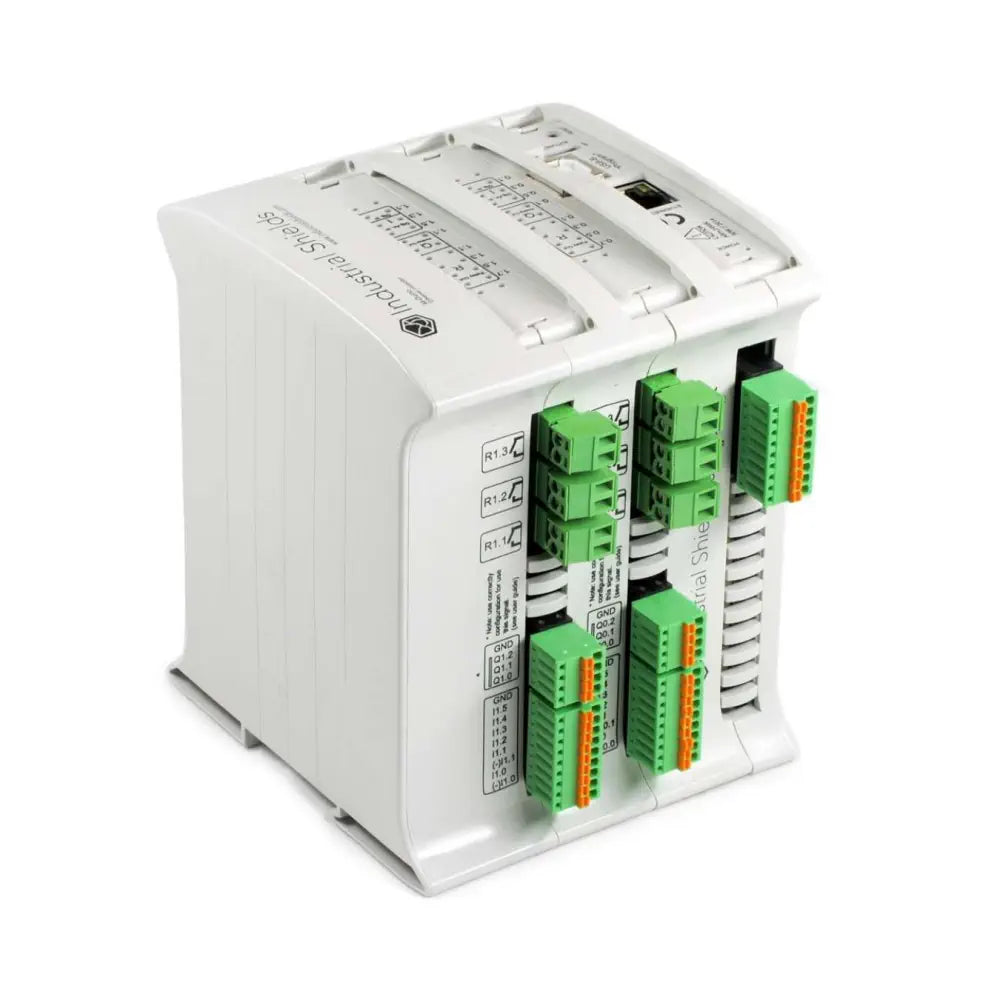

Industrial Shields M-DUINO PLC Arduino Ethernet 38AR I/Os Analog/Digital PLUS
$386.57
Description
- Industrial Shields M-DUINO PLC Arduino Ethernet 38AR I/Os Analog/Digital PLUS
- Offers the possibility to expand up to 127 modules through I2C
- Designed for a professional use
- Contains several communication ports
- Provides more flexibility and control
- Programmed through the USB ports
The Industrial Shields M-DUINO PLC Arduino Ethernet 38AR I/Os Analog/Digital PLUS is the first equipment based on the Arduino technology designed for professional use. This programmable logic controller has 38I/Os. It also contains several communication ports that provide more flexibility and control.
The M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc.
This PLC controller can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free. The PLC M-DUINO is programmed through the USB ports. This PLC can also be programmed through Ethernet port remotely.
This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox PLC Range and the Touchberry Pi with an instantaneous connection.
- 1 x Industrial Shields M-DUINO PLC Arduino Ethernet 38AR I/Os Analog/Digital PLUS
Size
- 101 x 119.5 x 70.1 mm
- Max. consum.: 1.2 A
- Power Supply Voltage (Vdc) Range: 12-24
- Power Consumption (VAC max.): 30
- Operating Temperature C: 0 – 60 °C / 32 – 140 °F
- Operating Relative Humidity % (no condensation): 10 – 90%
Inputs
- Total Inputs: 19
- Total Digital Optoisolated Inputs (7-24 Vdc): 9
- Digital Optoisolated Inputs (7-24 Vdc): 5
- Digital Optoisolated Inputs (7-24 Vdc) | can work like interrupt Inputs INT (7-24 Vdc): 4
- 10-bit Analog Inputs (0-10 V) | Digital (5-24 Vdc) Inputs configurable by software: 10
Outputs
- Total Outputs: 19
- Digital Optoisolated Outputs (5-24 Vdc): 5
- Digital Optoisolated and PWM (5-24 Vdc) | 8-bit Analog (0-10 V) Outputs configurable by switch: 6
- Relay Outputs (220 Vac – 5 A): 8
Communications
- Ethernet communication: 1
- Wi-Fi & BLE (Bluetooth Low Energy): NO
- GPRS/GSM: NO
- USB port (type B) communication (for uploading or debugging only): 1
- Micro USB port (type B) communication (for uploading or debugging only): 0
- I2C communication (interface with other Industrial Shields, sensors, I/Os modules): 1
- Serial TTL (UART) communication: 2
- RS-232 communication: 1
- Half/Full-Duplex RS-485 communication: 1
- SPI external port communication (using MOSI, MISO, SS pins of Arduino): 1
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification): Yes
- µSD Socket (using SPI port, chip select D53 pin): Yes
The Open Source Board CPU
- Single Board Computer (SBC) Microcontroller: Arduino Mega Original Board (ATmega 2560)
- Flash Memory (KB): 256
- Flash Memory of which used by the bootloader (KB): 8
- SRAM (KB): 8
- EEPROM (KB): 4
- Clock Speed (MHz): 16
