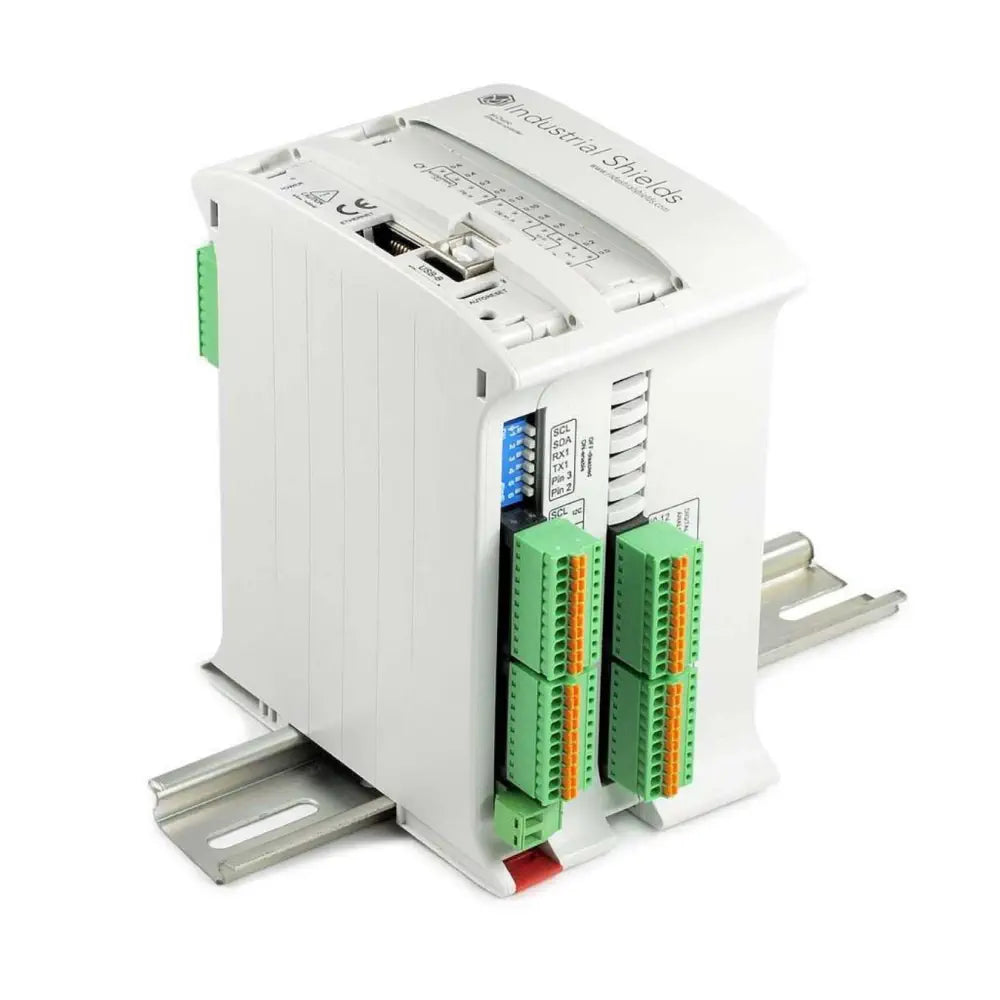

Industrial Shields Spartan Arduino PLC 21 Analog/Digital I/Os

• 1 x Industrial Shields Spartan Arduino PLC 21 Analog/Digital I/Os

Size

• 101 x 119.5 x 119.3 cm (L x W x H)

• Flash Memory (KB): 256
• Flash Memory of which used by the bootloader (KB): 8
• SRAM (KB): 8
• EEPROM (KB): 4
• Clock Speed (MHz): 16
• Max. consumption.: 1.2 A
• Power Supply Voltage (Vdc) Range: 12-24
• Power Consumption (VAC max.): 30
• Operating Temperature C: 0 – 60 °C
• Operating Temperature F: 32 – 140 °F
• Operating Relative Humidity % (no condensation): 10 – 90%

Inputs

• Total Inputs: 12
• Total Digital Optoisolated Inputs (7 – 24 Vdc): 7
• Digital Optoisolated Inputs (7 – 24 Vdc): 5
• Digital Optoisolated Inputs (7 – 24 Vdc) | can work like interrupt Inputs INT (7 – 24 Vdc): 1
• 10-bit Analog Inputs (0 – 10 V) | Digital (5 – 24 Vdc) Inputs configurable by software: 6

Outputs

• Total Outputs: 8
• Digital Optoisolated Outputs (5 – 24 Vdc): 5
• Digital Optoisolated and PWM (5 – 24 Vdc) | 8-bit Analog (0 – 10 V) Outputs configurable by switch: 3
• Relay Outputs (220 Vac – 5 A): 0

Communication

• Ethernet: Yes
• USB port (type B): Yes
• Serial TTL (UART): Yes
• RS-232: Yes
• Half-Duplex RS-485: Yes

• Weight: 434 g
