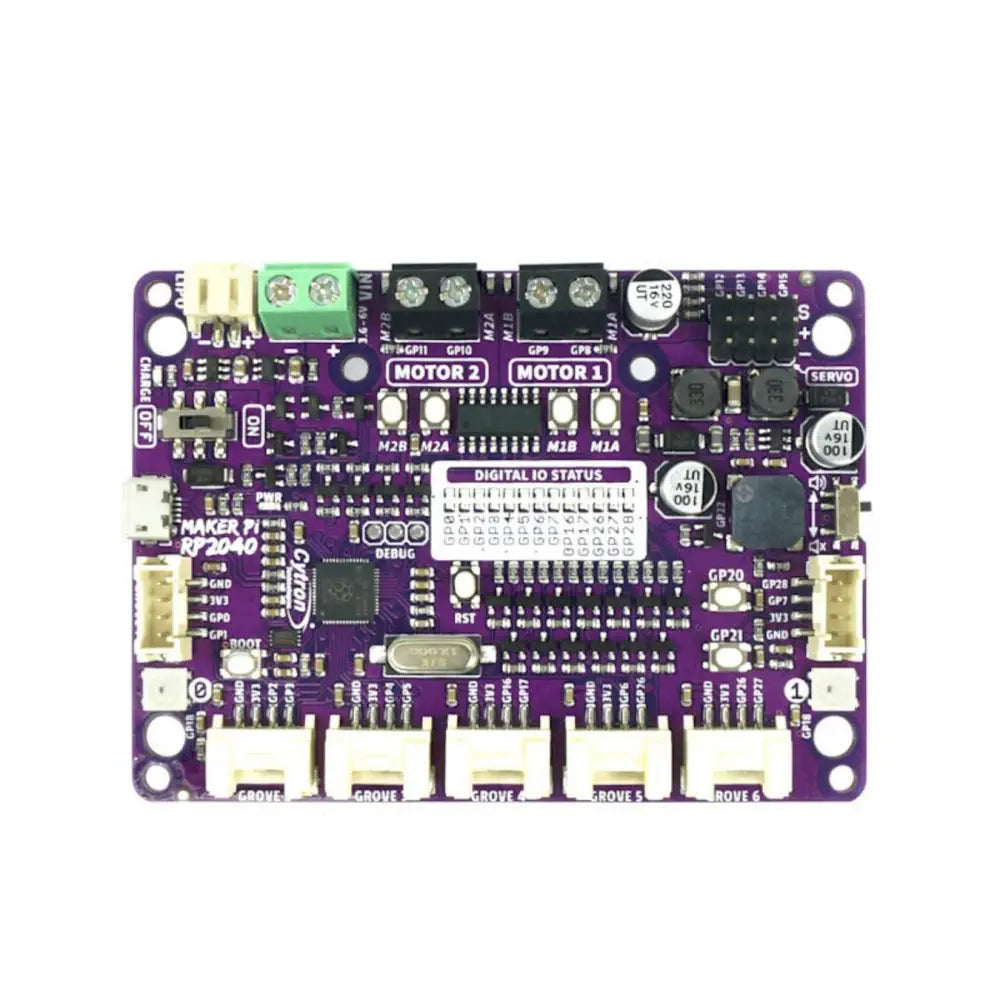

Maker Pi RP2040: Simplifying Robotics w/ Raspberry Pi RP2040
$12.10
Description
Description
- 1x Maker Pi RP2040
- 4x Grove to Female Header Cable
- 1x Mini Screwdriver
- 1x Silicone Rubber Feet (Pack of 4)
Size
- 88 x 64 x 13 mm (L x W x H)
- Microcontroller: Raspberry Pi RP2040, dual-core Cortex M0+ at up to 133MHz clock, 264 KByte SRAM
- Flash Size: 2 MByte O-SPI flash
- Pre-loaded Programming Language: CircuitPython
- USB Interface: USB 1.1 Device and Host
- Power Switch: Yes
- Reset Button: Yes
- Push Button: 3x programmable push-button: BOOTSEL GP20 & GP21
- Piezo Button: Yes, with a mute switch to GP22
- Programmable LED: 13x Blue LED: GPO – GP7, GP16 – GP17 & GP26 – GP28
- RGB LED (Neopixel): Two, connected to GP18
- Servo Motor Port: 4x Servo motor port: GP12, GP13, GPU & GP15
- Header Pin: No, except for servo ports
- Micro SD socket: No
- WIFI socket: No
- Audio socket: No
- Debug Port: Serial Wire Debug (SWD) Port
Power Input
- 5 V via USB Micro B
- 3.7 V via Li-Po/Li-Ion battery port
- 3.6 V – 6 V via VIN terminal with automatic power input selection
DC Motor Terminal (motor driver)
- Dual-channel H-bridge controls up to 2x
- brushed DC motor or lx stepper motor
- M1A:GP8 | M1B:GP9
- M2A; GP10 I M2B: GP11
Grove Port (3.3V) (flexible I/O options: digital, analog, I2C, SPI, UART…)
- GROVE 1: GPO, GP1
- GROVE 2: GP2, GP3
- GROVE 3: GP4, GP5
- GROVE 4: GP16, GP17
- GROVE 5: GP6, GP26
- GROVE 6: GP26, GP27
- GROVE 7: GP7, GP28
