Description

Description

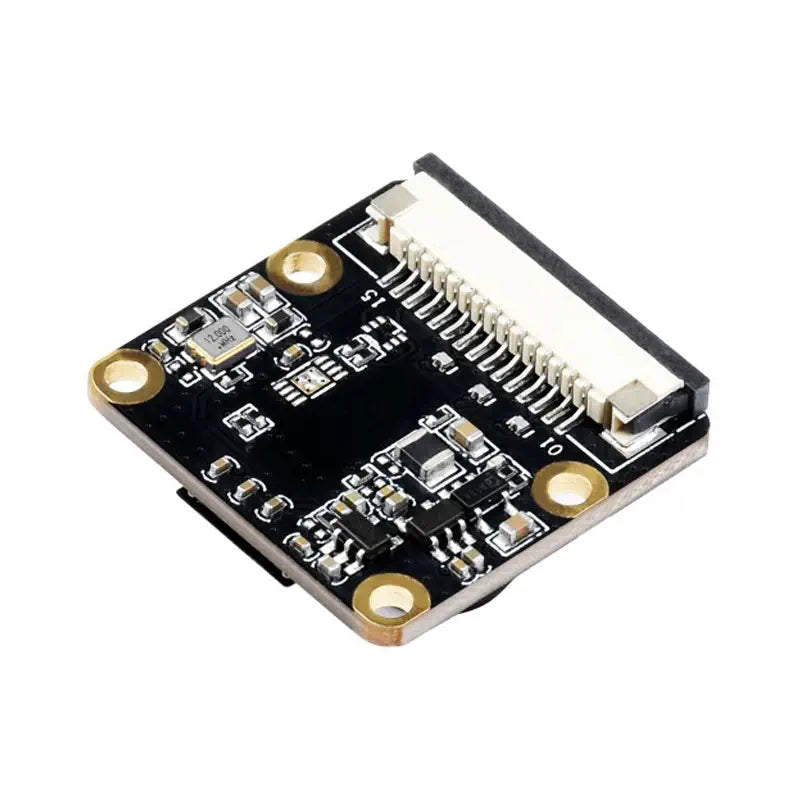

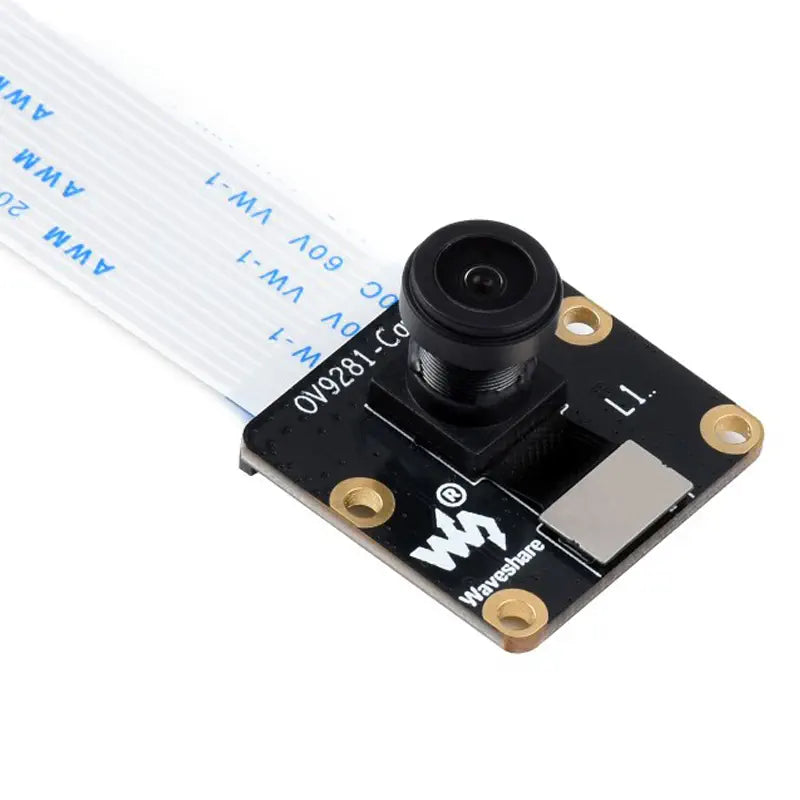

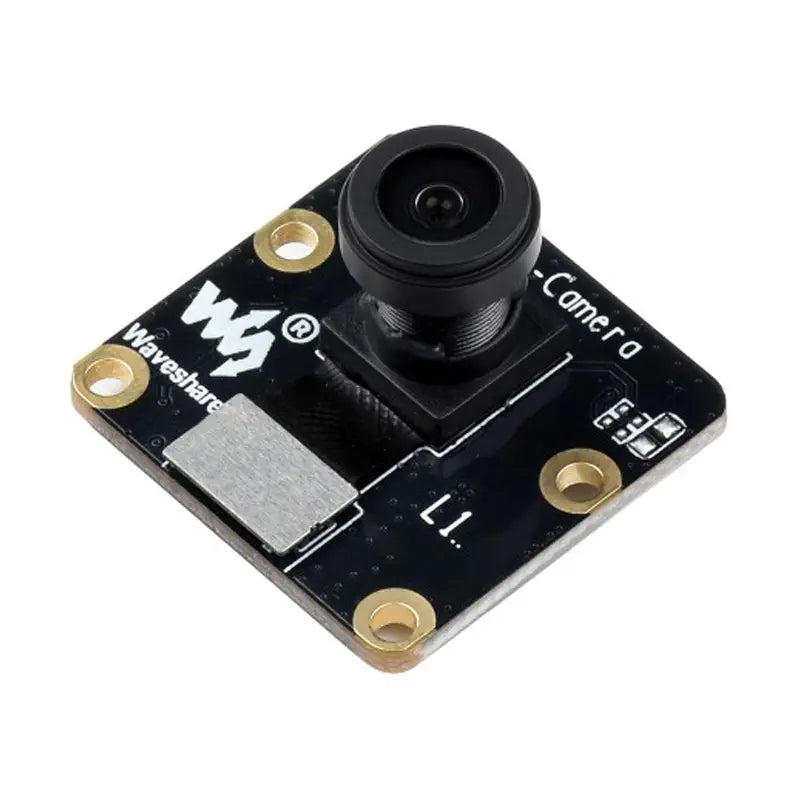

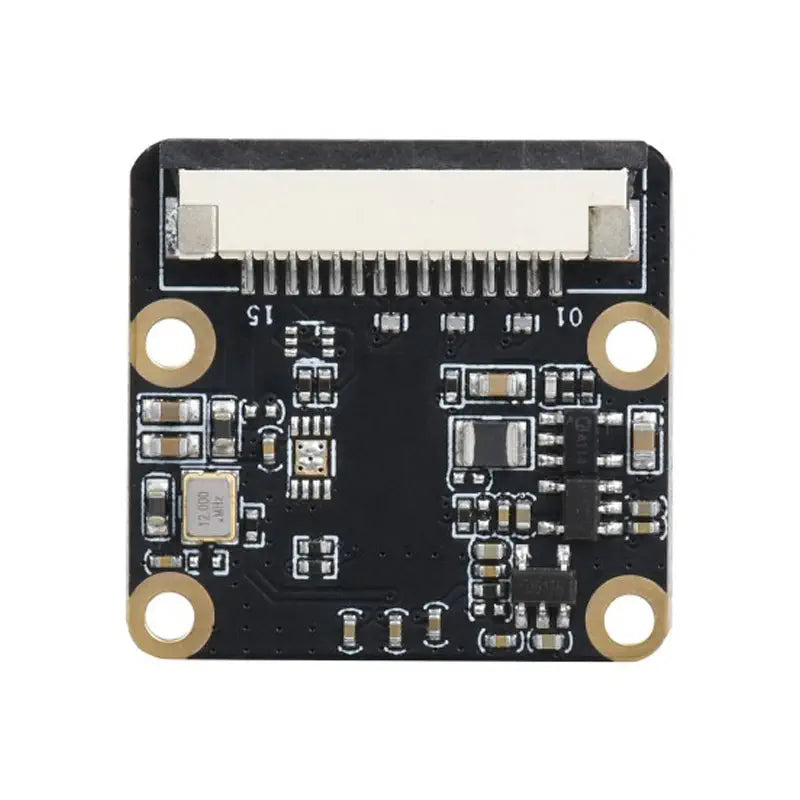

  • Mono Camera OV9281-120 for Raspberry Pi
  • Compatible with multiple Raspberry Pi models
  • 1MP resolution for clear, distortion-free images
  • Global shutter technology eliminates jello-effect
  • Wide 110° field of view for expansive coverage

The Mono Camera OV9281-120 for Raspberry Pi, Global Shutter, 1MP offers a 110° field of view and is designed for use with Raspberry Pi series boards, including 4B, 3B+, 3A+, Zero, Zero 2 W, and CM3/3+/4 (additional adapter board required).

This camera is equipped with a global shutter, which effectively eliminates the jello-effect often experienced when capturing fast-moving objects. As a result, it is more suitable for high frame rate capturing applications.

The OV9281-120 Mono Camera can be directly connected to various Raspberry Pi models, with an extra FPC cable required for the Zero / Zero 2 W series. Its compatibility with multiple Raspberry Pi boards makes it a versatile choice for users seeking a high-quality camera solution for their projects.

The 1MP resolution and global shutter technology ensure that the captured images and videos are clear and free from distortion, even when recording fast-moving subjects.

  • 1x OV9281-120 Camera
  • 1x 15-Pin FFC (opposite sides contact)

  • 25 x 23.86 mm
  • CMOS: 1/4 inch
  • Focal length: 3.15 mm

  • Sensor: OV9281
  • Camera type: Monochrome
  • Pixels: 1MP (1280 x 800)
  • Shutter: Global Shutter
  • Aperture: F2.5
  • Distortion: Less than 7.5%
  • Field of view: 120° (Diagonal)
  • Focusing: Fixed Focus
