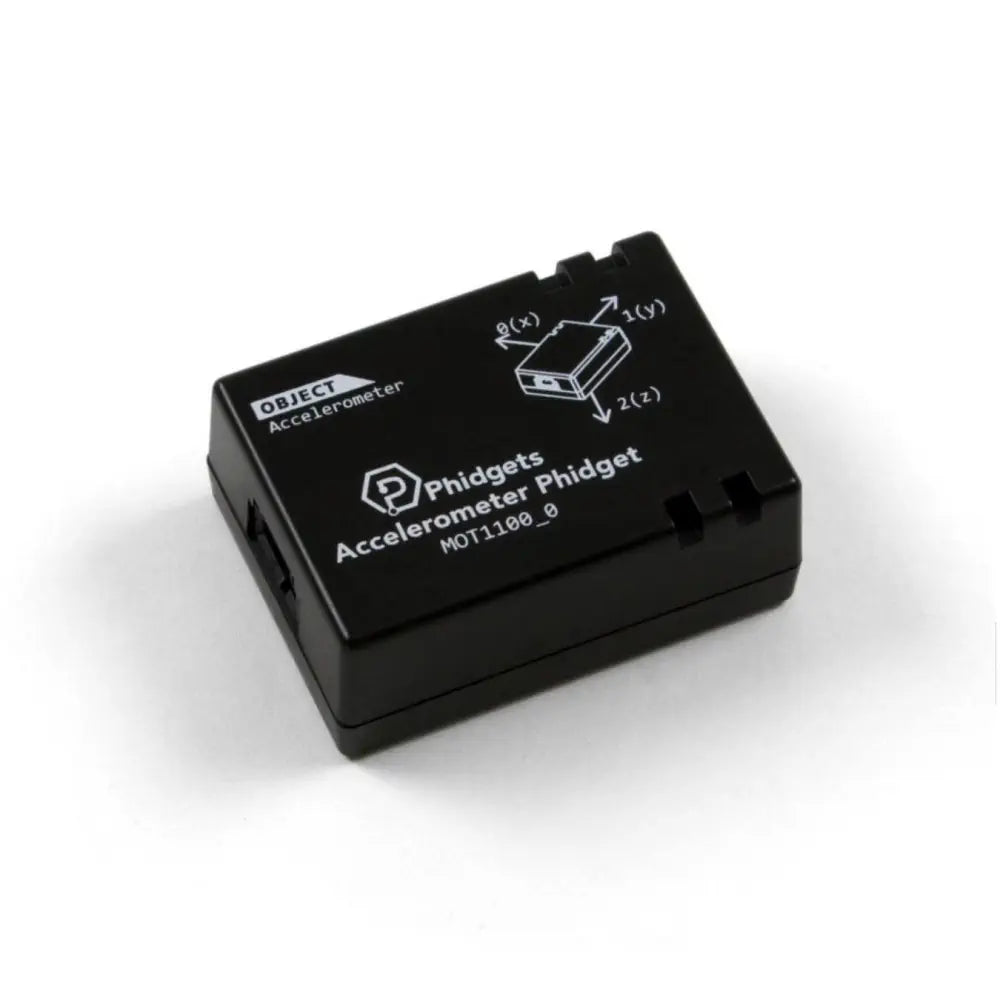

Phidget VINT Accelerometer
Original price was: $24.20.$20.20Current price is: $20.20.
Description
- Accelerometer that can be used to measure the movement of an object or to detect vibration
- Acceleration Measurement Max: ± 8 g
- Connects to a port on a VINT Hub
- Compatible with the
VINT Hub Phidget and theÂPhidget SBC4 Debian GNU/Linux Single Board Computer (not included)
The Phidget VINT Accelerometer measures up to ±8g (or 78.5 m/s²) in each axis, which is more than you’ll ever produce in most ordinary applications. The MOT1100 connects to a port on a VINT Hub. The most common use for an accelerometer is to measure the movement of an object, such as a person or robotic vehicle.
You can compare the acceleration values on each axis to determine the direction and strength of the acceleration, and in some situations, even estimate velocity and position. An accelerometer could also be used to detect vibration.
- 1 x Phidget VINT Accelerometer
Board Properties
- Controlled By: VINT
Accelerometer
- Acceleration Measurement Max: ± 8 g
- Acceleration Measurement Resolution: 1 mg
- Accelerometer Noise: ± 5 mg
- Sampling Interval Min: 20 ms/sample
- Sampling Interval Max: 60 s/sample
Electrical Properties
- Current Consumption Max: * 2.3 mA
- Current Consumption Min: 319 μA
Physical Properties
- Operating Temperature Min: -40 °C
- Operating Temperature Max: 85 °C
