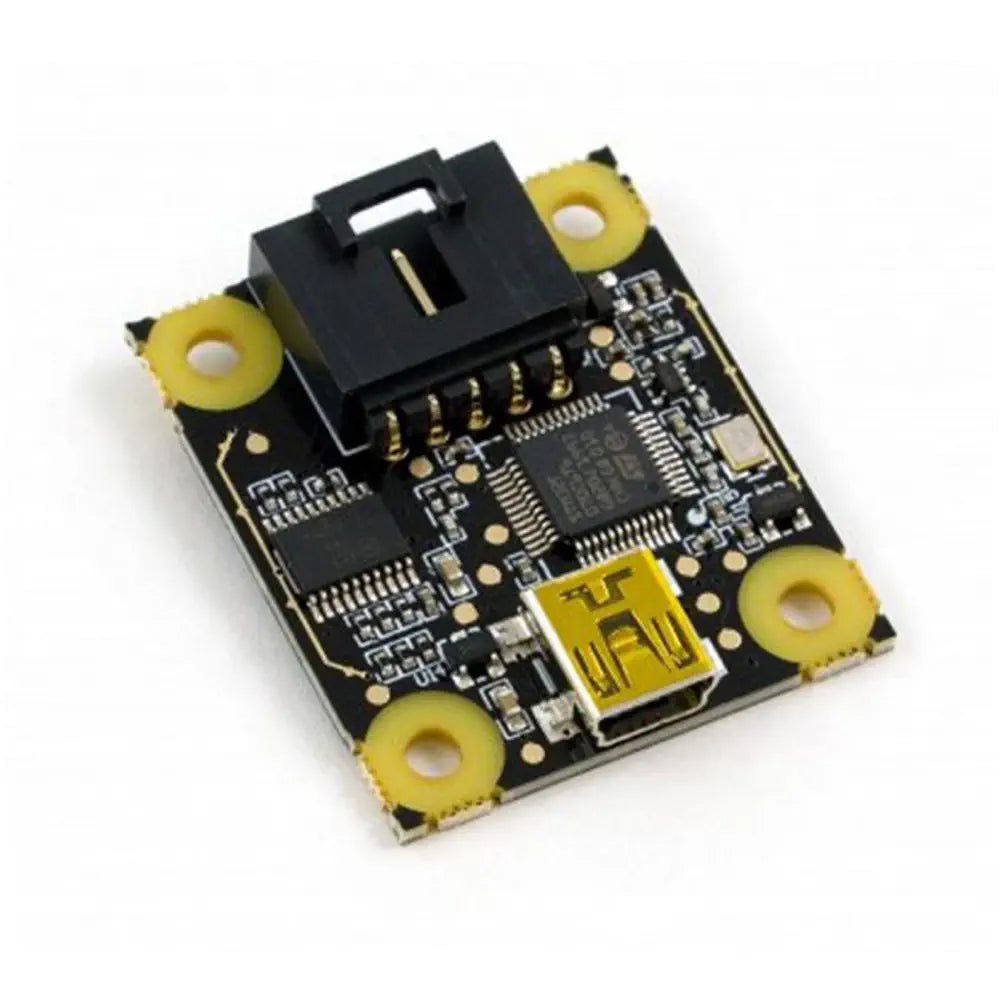

PhidgetEncoder HighSpeed

• 1 x PhidgetEncoder HighSpeed
• 1 x Hardware mounting kit (4 x 20 mm M3 Bolt, 4 x 5 mm Plastic spacer, 4 x M3 Nuts

Size

• Scale: 5 mm

Encoder Interface

• Controlled By: USB (Mini-USB)
• API Object Name: Encoder
• Number of Encoder Inputs: 1
• Count Rate Max: 1E + 06 pulses/s
• Encoder Interface Resolution: x4
• Sampling Interval Min: 0.008 s/sample
• Sampling Interval Max: 1 s/sample
• Encoder Input Low Voltage Max: 1.7 V DC
• Encoder Input High Voltage Min: 2.1 V DC
• Pull-down Resistance (Line Driver): 2.2 kΩ or 10 kΩ
• Pull-up Resistance (Open Collector): 2.2 kΩ or 10 kΩ
• USB Speed: High Speed

Electrical Properties

• Current Consumption Max: 500 mA
• Current Consumption Min: 55 mA
• USB Voltage Min: 4.5 V DC
• USB Voltage Max: 5.3 V DC

Physical Properties

• Operating Temperature Min: -40 °C
• Operating Temperature Max: 85 °C
