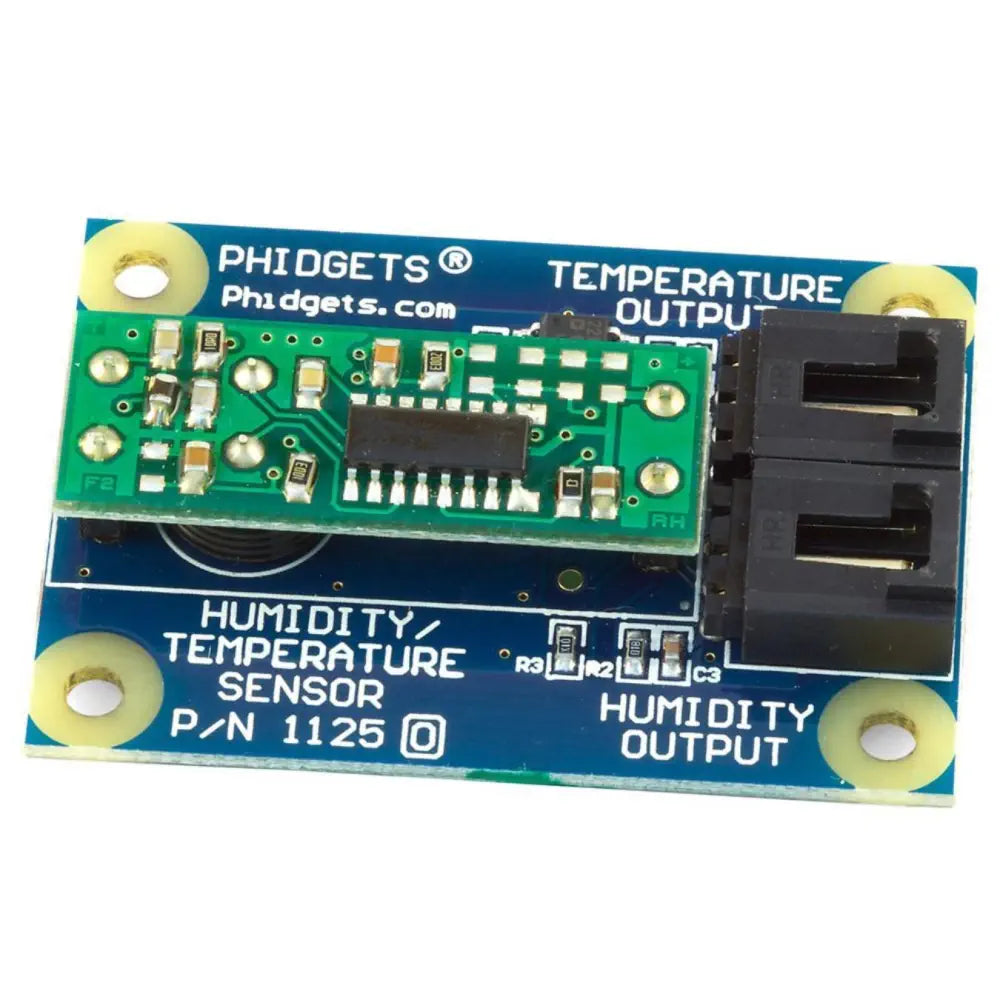

Phidgets Humidity/ Temperature Sensor
Original price was: $60.50.$42.35Current price is: $42.35.
Description
- Measures Relative Humidity from 10? to 95?
- Connects to any device with an Analog Input
- Supply Voltage: 4.8 to 5.3 VDC
- RoHS Compliant
The Phidgets Humidity/ Temperature Sensor measures Relative Humidity from 10? to 95? with a typical error of ±2? RH at 55? RH. The temperature sensor component is rated at -40º C to +100º C, but the other components on the board, the connector and the cable are rated at -30º C to +80º C.
PDF File
ZIP File
Website
Sensor Properties
- Sensor Type: Temperature/Humidity (Ambient)
- Sensor Output Type: Ratiometric
Temperature Sensor
- Ambient Temperature: -30º C to 80º C
- Ambient Temperature Resolution: 0.2º C
- Temperature Error Typical (At 25º C): ± 0.5º C
- Ambient Temperature Error Max: ± 2º C
Humidity Sensor
- Humidity: 10 ?RH to 95 ?RH
- Humidity Resolution: 0.4 ?RH
- Humidity Error (At 55%RH): ± 2 ?RH
- Humidity Error Max: ± 5 ?RH
- Humidity Response Time Max: 10 s
Electrical Properties
- Supply Voltage: 4.8 to 5.3 VDC
- Current Consumption Max: 3.9 mA
- Output Impedance: 1 kO
Physical Properties
- Operating Temperature: -30º C to 80º C
