Seeedstudio Grove Breadboard for Electronics Projects

• Seeedstudio Grove Breadboard for Electronics Projects
• Includes Grove connector for creating custom modules
• Compatible with main controller boards like Seeeduino/Arduino
• Features on-board Grove port for easy connectivity
• Equipped with a resettable fuse for protection up to 500mA

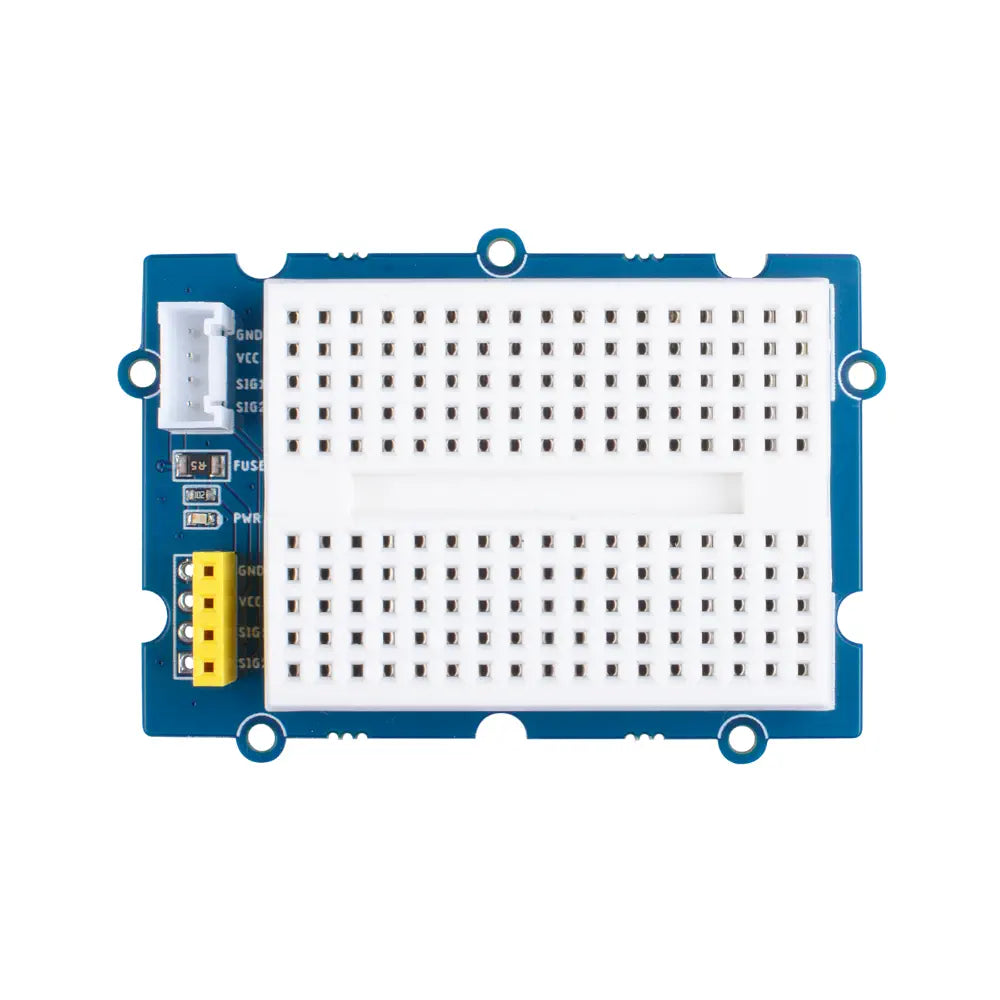

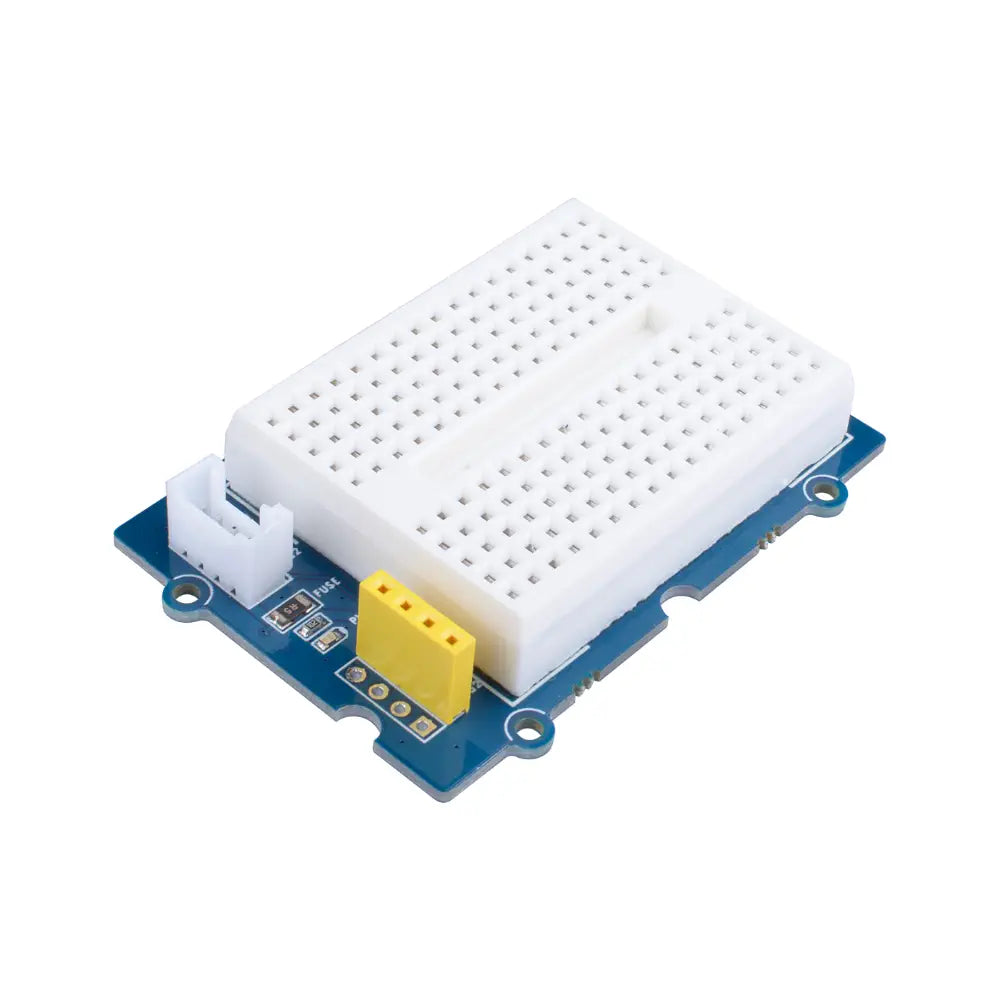

The Seeedstudio Grove Breadboard for Electronics Projects is a distinguished product from Seeed Studio. This breadboard, measuring 35 x 47 x 8.5 mm, is equipped with metal strips beneath the board that link the holes on its surface. A unique feature of this breadboard is the inclusion of a Grove connector, which enables users to construct their own Grove module, thereby fostering their inventive skills.

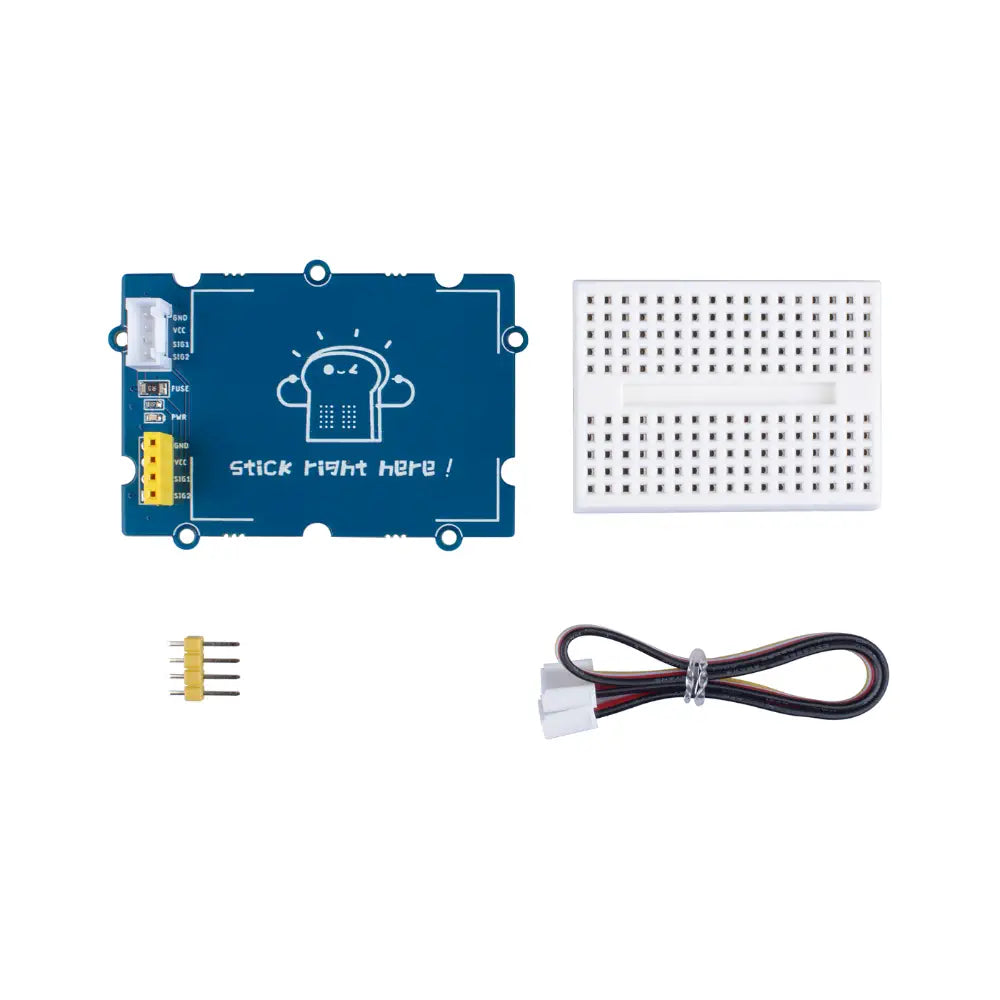

The product is paired with a PCB board, which further allows users to create their own Grove module. This breadboard is compatible with main controller boards such as Seeeduino/Arduino, Seeed Studio BeagleBone Green, and LinkIt One.

It is designed with an on-board Grove port for effortless plug-and-play connectivity, an on-board Dupont connector for simplified prototyping, an on-board resettable fuse (PTC) for protection with a maximum current of 500 mA, and an on-board Power LED to display the operational status. The standard Grove size is 40 x 60 mm.

Please note: The breadboard is equipped with a resettable fuse (PTC) for protection. It is advised to not exceed the maximum current of 500 mA.
