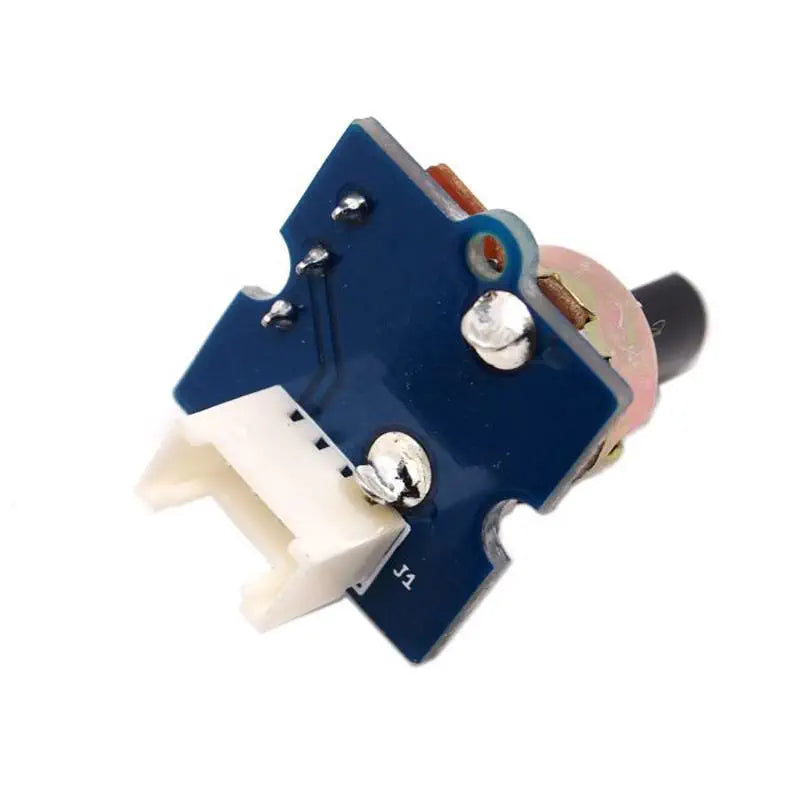

Seeedstudio Grove Rotary Angle Sensor (P)

• Seeedstudio Grove Rotary Angle Sensor (P)
• Provides an angular range of 300 degrees with a linear change in value
• Produces analog output between 0 and Vcc
• Compatible with both Arduino and Raspberry Pi (Not included)
• Voltage: 5 V
• Rotary Angle: 0° – 300°

The Seeedstudio Grove Rotary Angle Sensor (P) is compatible with both Arduino and Raspberry Pi. This potentiometer twig produces analog output between 0 and Vcc (5V DC with Seeeduino) on its D1 connector. The D2 connector is not used. The angular range is 300 degrees with a linear change in value. The resistance value is 10k ohms, perfect for Arduino use. This may also be known as a rotary angle sensor(panel mount version).

Application

• Grove-based analog Input
• Arduino project
• Raspberry PI project
• Maker education
