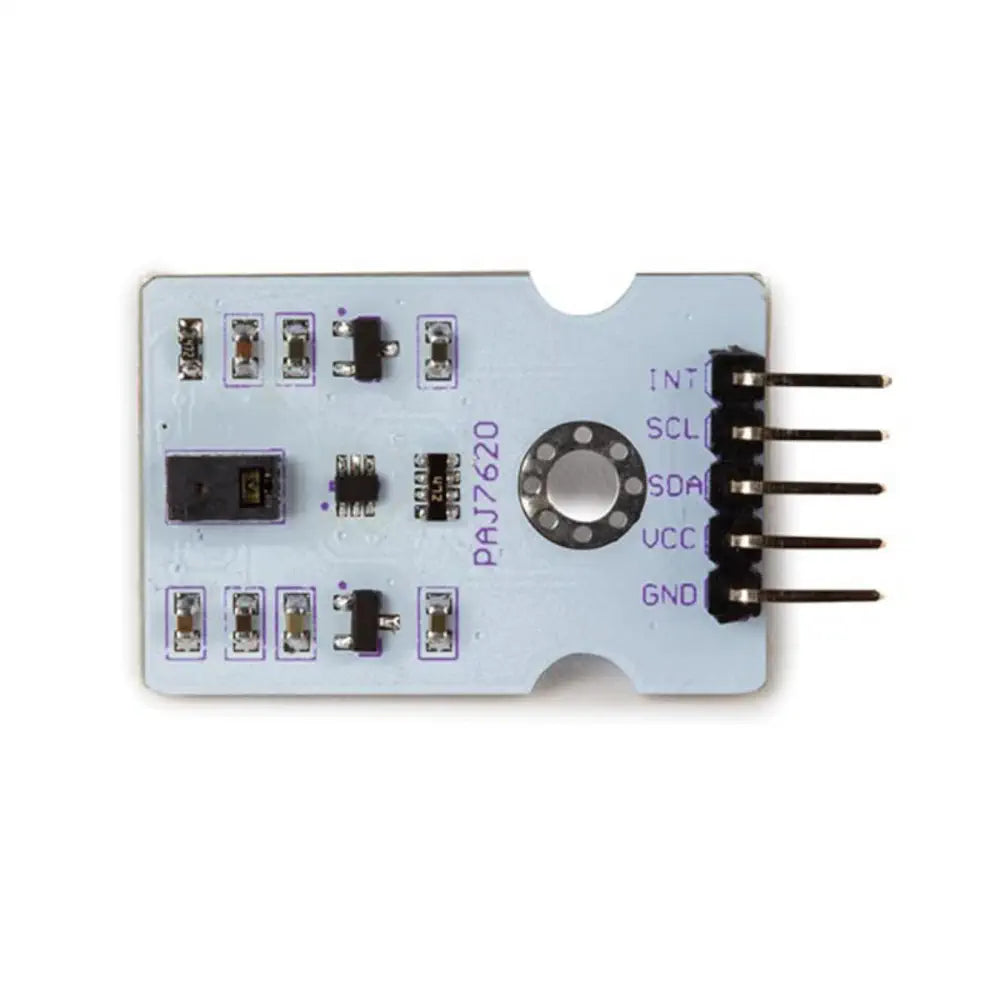

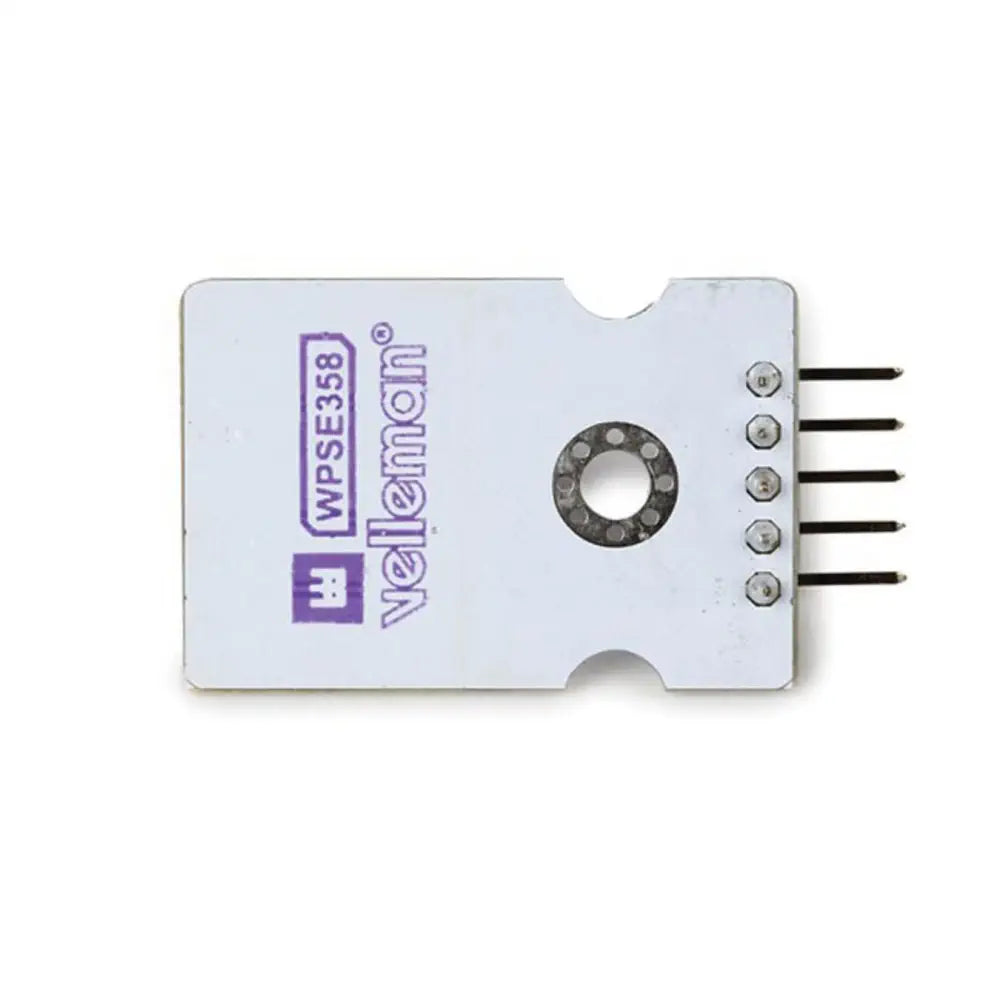

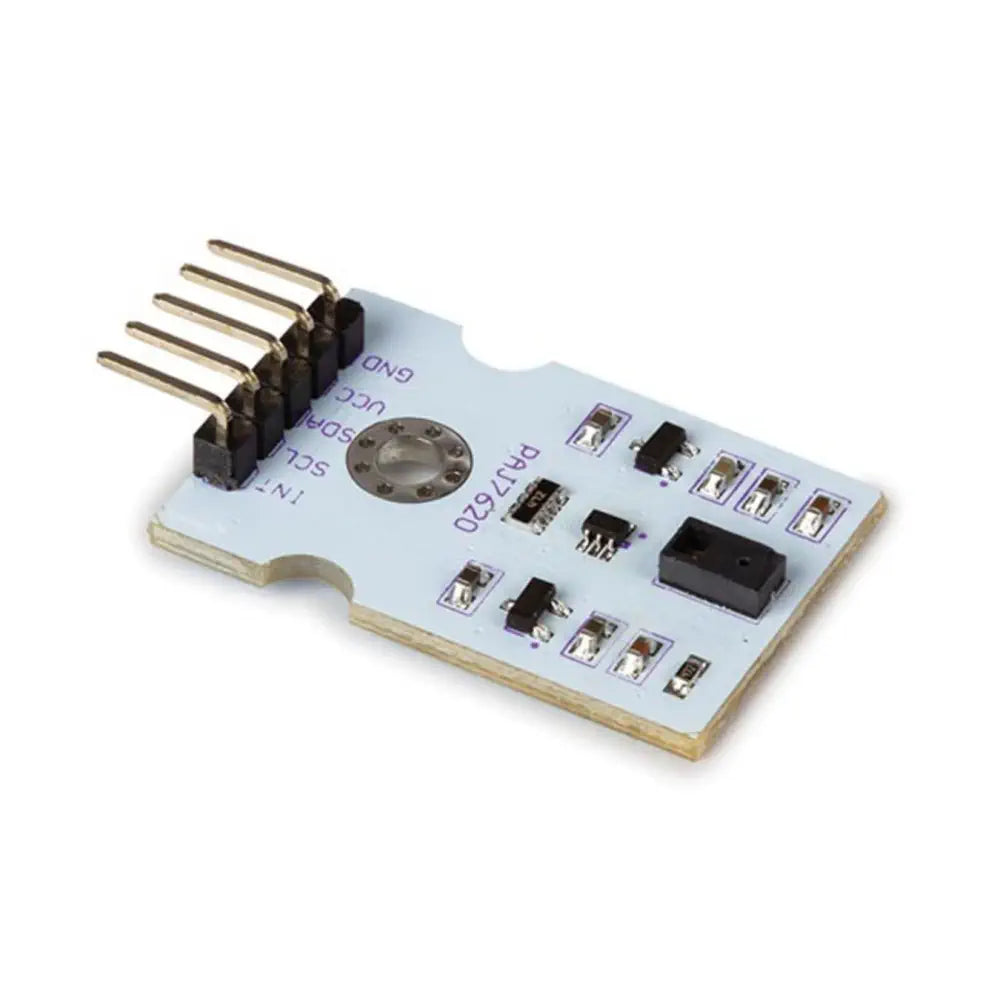

Velleman Gesture Recognition (PAJ7620) Sensor Module
$14.69
Description
- Gesture Recognition (PAJ7620) Sensor Module by Velleman
- Detects 9 distinct gestures
- Can read your gestures at a different speed
- Interface: I2C
- Supply Voltage: 5 V DC
- Detection Distance: max. 10 cm
The Velleman Gesture Recognition (PAJ7620) Sensor Module detects 9 distinct gestures up, down, forward, backward, and rotating, to use as an input for your project.
The module has a normal and game mode that can read your gestures at a different speed. The detection distance is 10 cm and the ambient light immunity is <100k lux. It has a 12C interface that is easy to interface with microcontroller boards.
- 1x Velleman Gesture Recognition (PAJ7620) Sensor Module
Size
- 20.1 x 35.5 x 7 mm (L x W x H)
- Supply Voltage: 5 V DC
- Working Current: 50 mA
- Max. Power: 0.5 W
- Detection Distance: max. 10 cm
- Gesture Speed: 60 °/s – 600 °/s (in normal mode), 60 °/s – 1200 °/s (in game mode)
- Ambient light immunity: < 100k lux
- I2C communication speed: max. 400 kbit/s
- Working Temperature Range: -25 – +65 °C
- Interface Connector: standard 5-pin pin header
