Waveshare 1.3in LCD Display Module for RPi Pico, 65K Colors, 240×240, SPI

$10.88

Description

Description

  • Waveshare 1.3in LCD Display Module 65K Colors, SPI

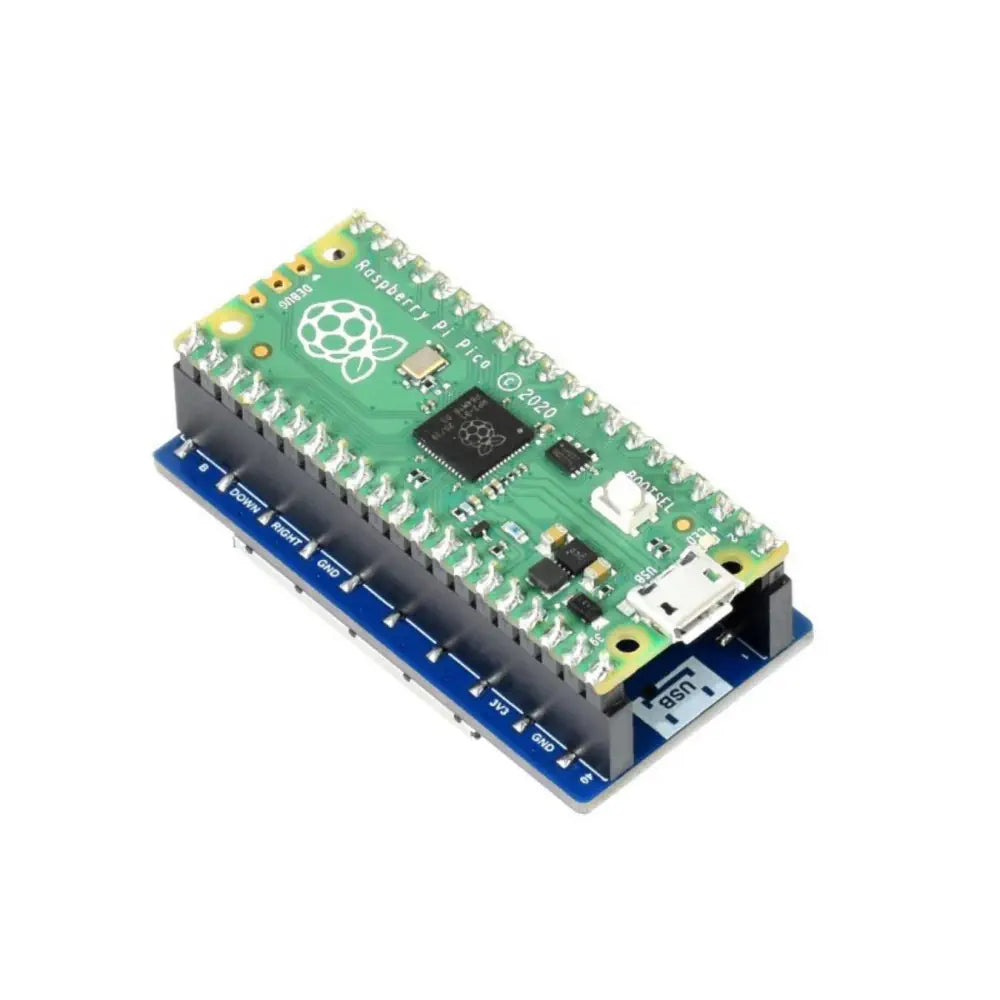

  • Designed for Raspberry Pi Pico (Not Included)
  • Offers 1.3-inch LCD display
  • Provides 240 x 240 pixel resolution
  • Features a joystick and four user buttons for easy interacting
  • Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

The Waveshare 1.3in LCD Display Module for RPi Pico, 65K Colors, 240×240, SPI offers a 1.3-inch LCD display. Comes with Raspberry Pi Pico C/C++ and MicroPython Demo.

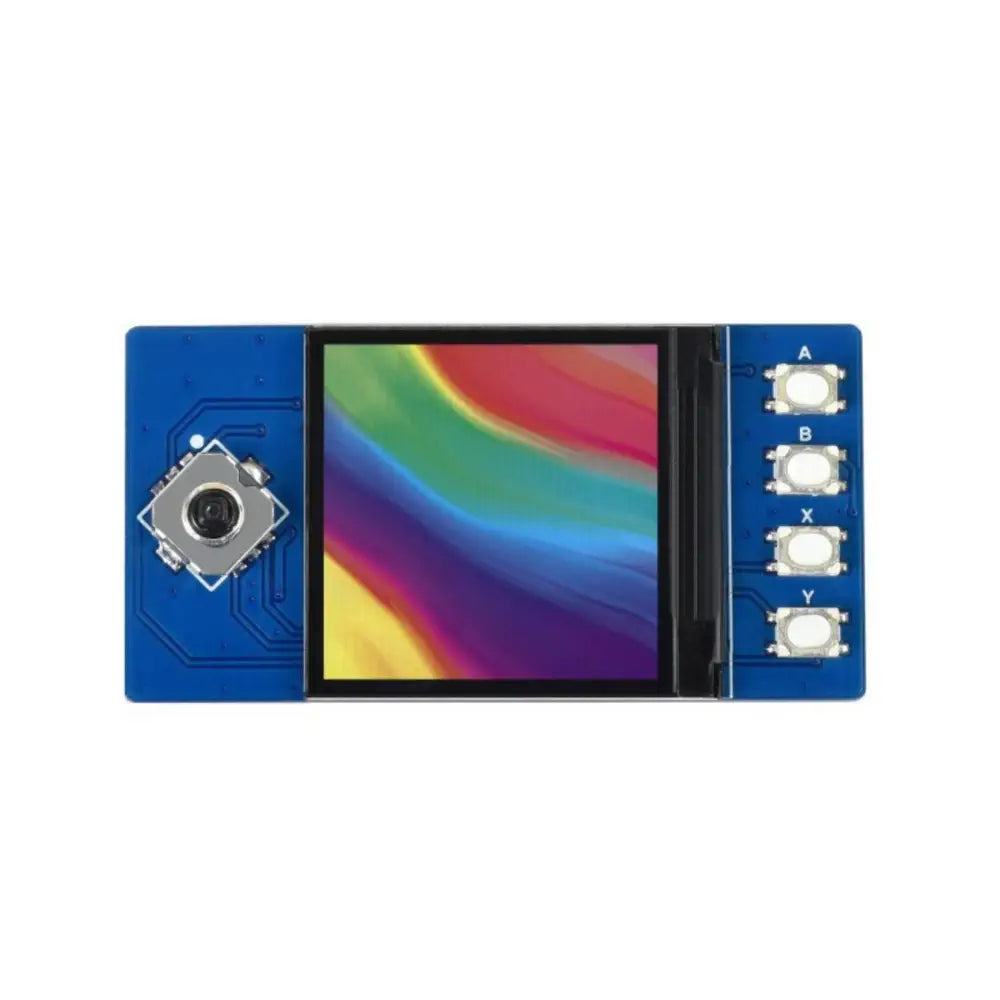

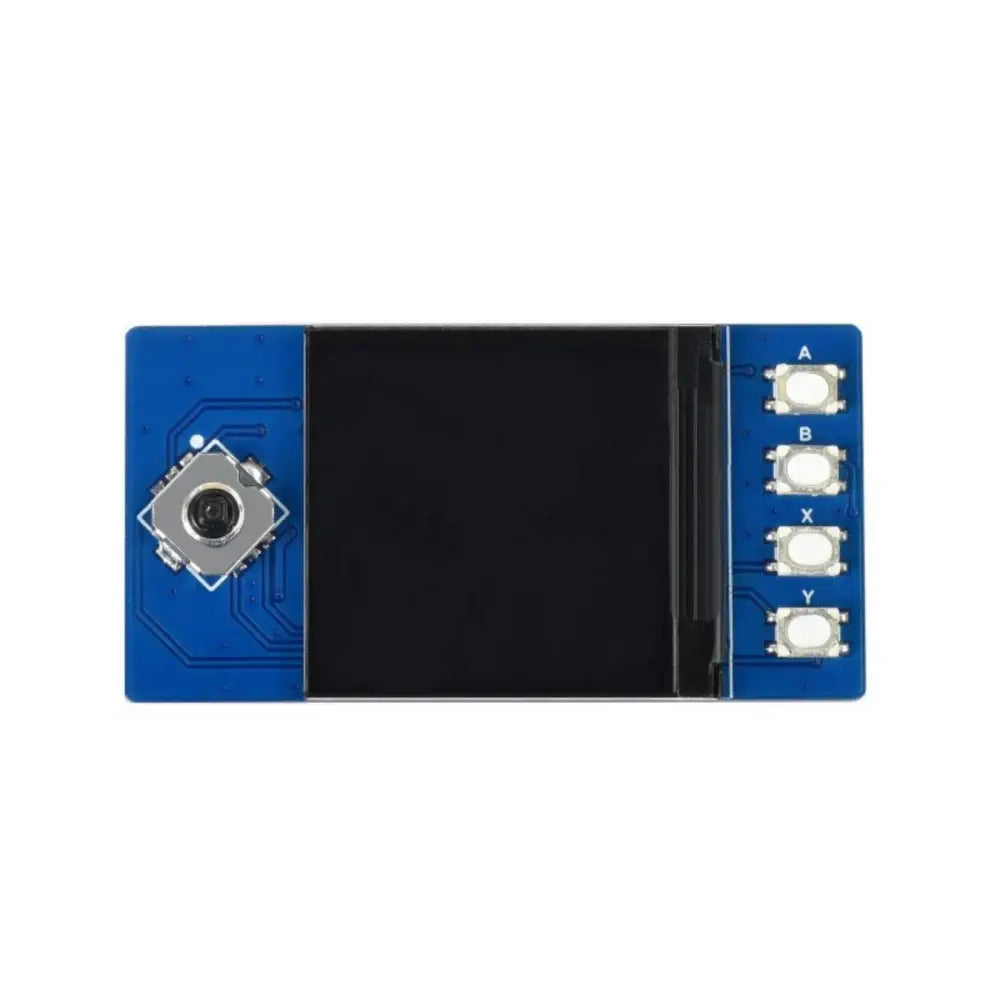

Features a joystick and four user buttons for easy interaction. Onboard female pin header for direct attaching to Raspberry Pi Pico. Provides 240 x 240 resolution IPS screen, and 65K RGB colors clear and colorful displaying effect.

  • 1 x Waveshare 1.3in LCD Display Module for RPi Pico, 65K Colors, 240×240, SPI

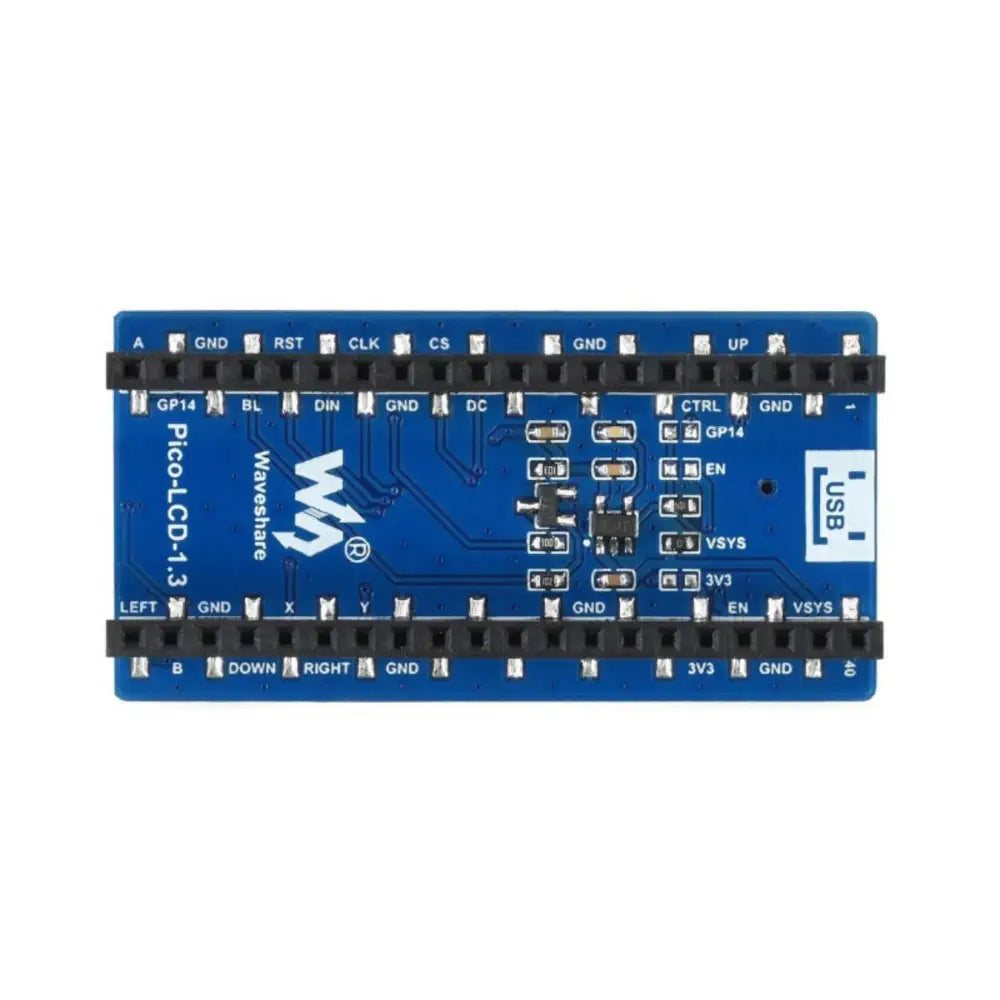

Waveshare 1.3in LCD Display Module for RPi Pico, 65K Colors, 240x240, SPI - Click to Enlarge

Size

  • 52 x 26.50 mm (L x W)
  • Display: 23.4 x 23.4 mm
  • Pixel: 0.0975 x 0.0975 mm
  • Screen: 1.3 inch

  • Operating Voltage: 2.6 ~ 5.5 V
  • Communication Interface: 4-wire SPI
  • Display Panel: IPS
  • Screen: LCD
  • Driver: ST7789
  • Resolution: 240 x 240 pixels
  • Weight: 0.012 kg
