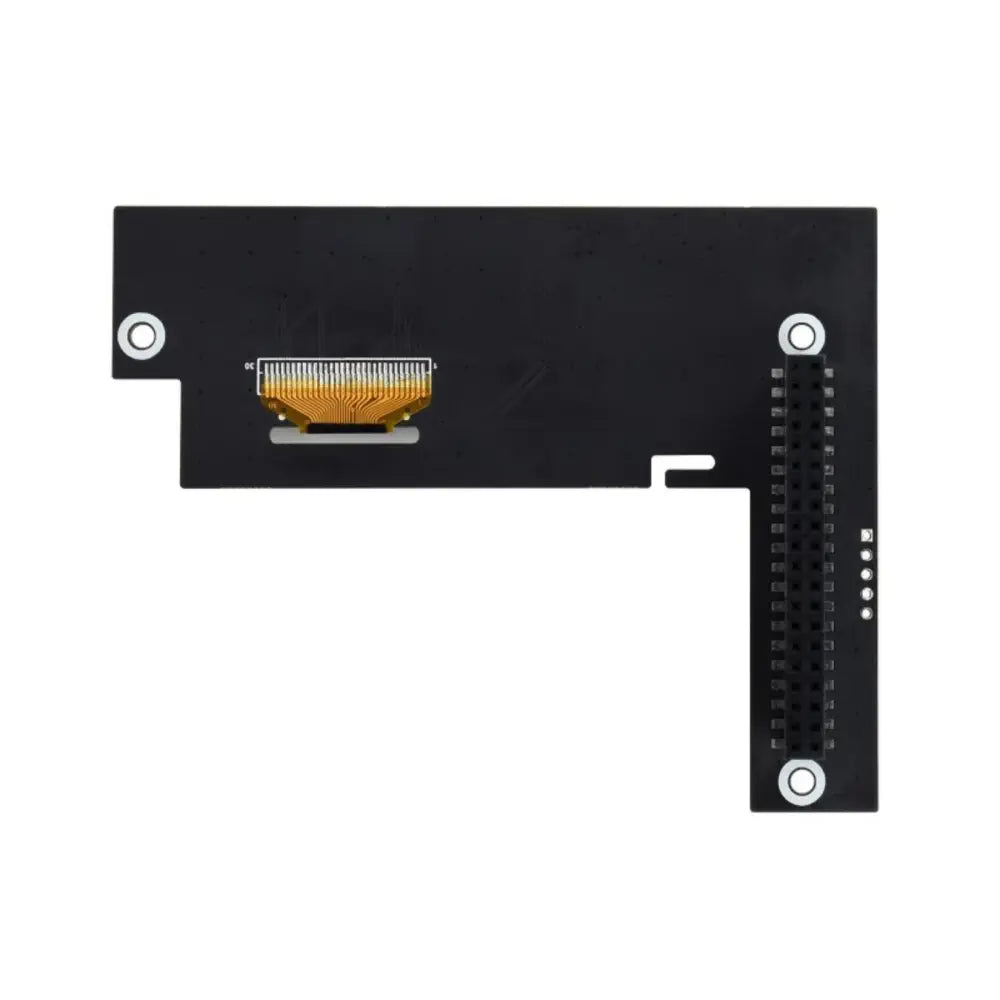

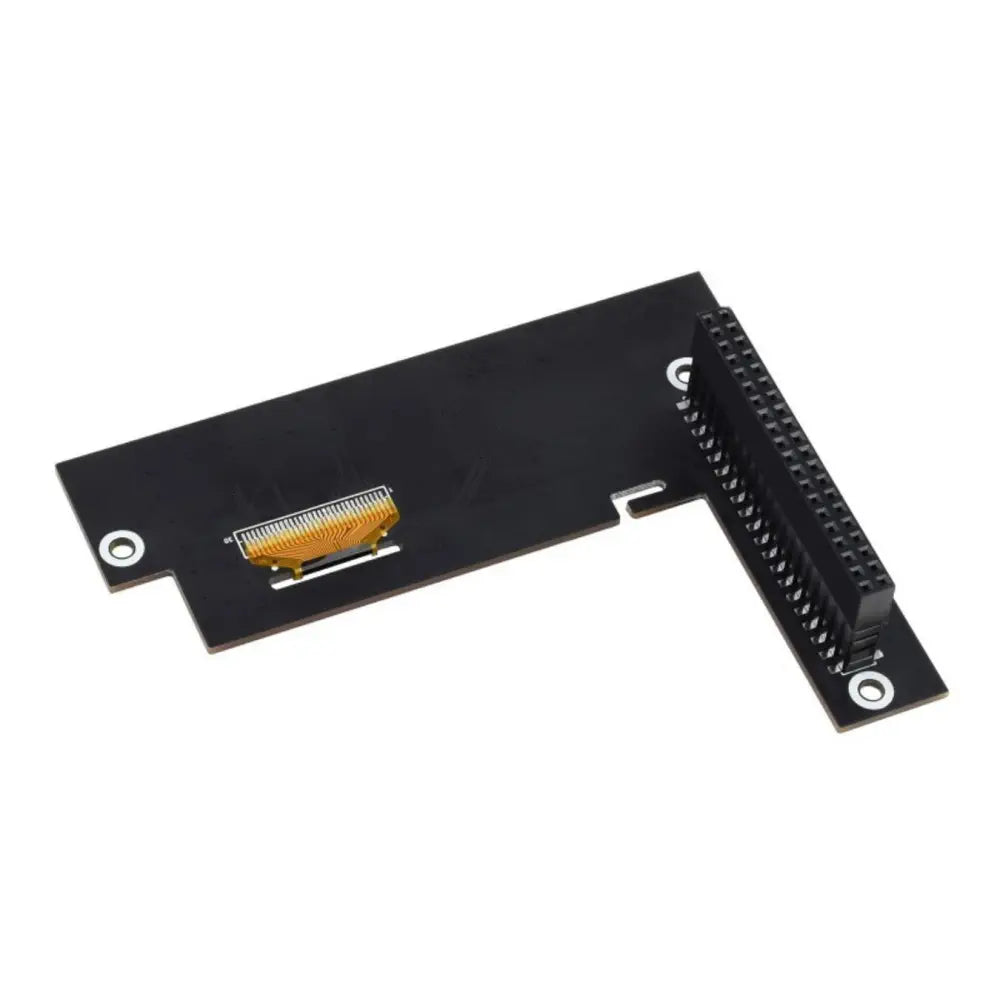

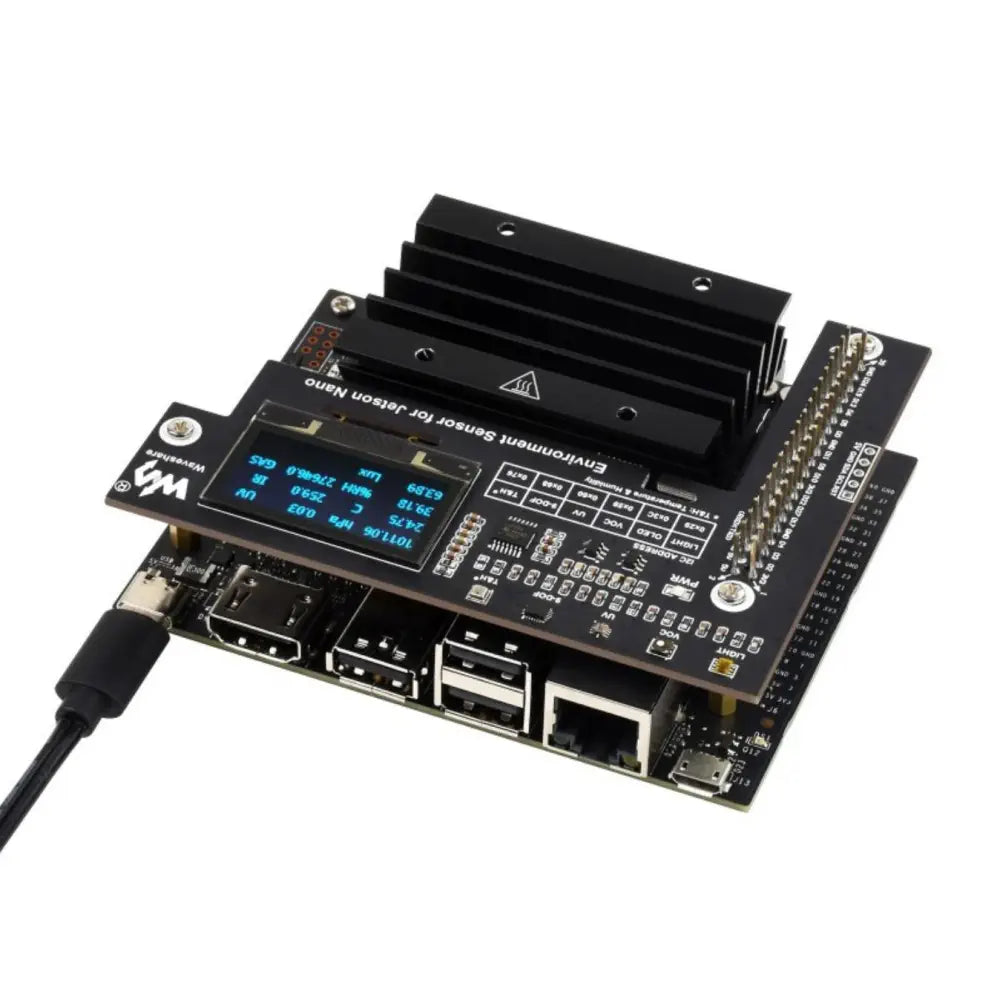

Waveshare Environment Sensors Module for Jetson Nano, I2C Bus w/ 1.3in OLED Display

• 1 x Environment Sensor for Jetson Nano
• 1 x Screws pack

Size

• 100 x 79 mm (L x W)

PDF FIle

• Waveshare Environment Sensors Module for Jetson Nano, I2C Bus w/ 1.3in OLED Display – Schematics

OLED Display

• I2C address: 0x3C
• Driver IC: SH1106
• Resolution: 128 x 64
• Display color: blue

TSL25911FN Digital Ambient Light Sensor

• I2C address: 0x29
• Effective range: 0~88000Lux

BME280 Temperature, Humidity, and Air Pressure Sensor

• I2C address: 0x76
• Temperature detection: -40 ~ 85 ℃ (0.01 ℃ resolution, ±1 ℃ accuracy)
• Humidity detection: 0~100 %RH (0.008 %RH resolution, ±3 %RH accuracy, 1s response time, ≤2 %RH delay)
• Air pressure detection: 300~1100 hPa (0.18 Pa resolution, ±1 hPa accuracy)

ICM20948 Motion Sensor

• I2C address: 0x68
• Accelerometer resolution: 16-bit
• Accelerometer range (configurable): ±2, ±4, ±8, ±16g
• Gyroscope resolution: 16-bit
• Gyroscope range (configurable): ±250, ±500, ±1000, ±2000 °/sec
• Magnetometer resolution: 16-bit
• Magnetometer range: ±4900µT

SI1145 IR/UV Sensor

• I2C address: 0x60
• Response wavelength: 280 – 950 nm

SGP40 VOC Sensor

• I2C address: 0x59
• Measuring range: 0 ~ 1,000 ppm ethanol equivalent
• Limit condition: < 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail)
• Response time: < 10 s (tau 63 %)
• Start time: < 60 s

• Weight: 0.137 kg
