Waveshare Mini Base Board (C) for Raspberry Pi CM 4 w/ Case + Fan (US)
$43.55
Description
- Waveshare Mini Base Board (C) for Raspberry Pi CM 4 (US-Plug)
- Includes Case and Fan
- Advanced design for Raspberry Pi Compute Module 4
- Supports 70H-1024600-IPS-A Series Display
- Features Gigabit Ethernet, M.2 M KEY, and HDMI 4K 30fps
- Includes real-time clock and TF card socket
- Durable aluminum alloy case with cooling fan
The Waveshare Mini Base Board (C) for Raspberry Pi CM 4 w/ Case + Fan (US) is an advanced version specifically designed for the Raspberry Pi Compute Module 4. This product features a Waveshare CM4-IO-BASE-C (Advanced Ver.) inside, which facilitates the quick and easy construction of a mini-computer. The kit comprises an aluminum alloy case, a power supply, and a cooling fan.
The board is equipped with a dedicated 40-pin LCD connector for display and touch, supporting the 70H-1024600-IPS-A Series Display. Additionally, it provides a Gigabit Ethernet RJ45 connector, an M.2 M KEY connector for communication modules or NVME Solid State Drives, a Raspberry Pi 40-pin GPIO header, USB 2.0 Type-A ports, an LCD port, MIPI CSI-2 camera ports, and an HDMI port with 4K 30fps output support. It also includes a real-time clock with a battery socket and a TF card socket for Compute Module 4 Lite variants.

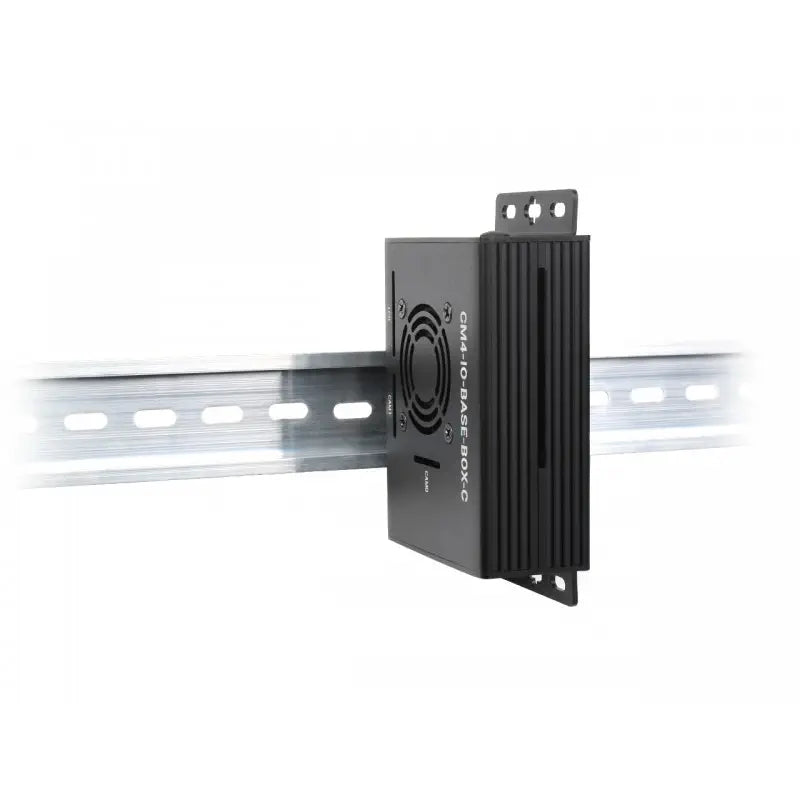

The cooling fan and industrial rail-mount design make this product suitable for a wide range of applications. The Mini Base Board (C) for Raspberry Pi Compute Module 4 w/ Case & Fan offers a comprehensive solution for those seeking to build a compact and efficient mini-computer.
- 1x CM4-IO-BASE-BOX-C
- 1x Metal Case (top and bottom)
- 1x Fan-4010-PWM-5V
- 1x Antenna Connector Rubber Plug
- 1x Rail-Mount Buckle
- 1x 5V 3A Type-C Power supply (US-Plug)
- 1x Screws Pack
- Board: 85 x 62.40 mm (L x W)
- Box: 113 x 68 x 32.6 (L x W x H)
- CM4 socket
- Gigabit Ethernet RJ45 connector
- M.2 M KEY
- Raspberry Pi 40PIN GPIO header
- USB 2.0 Type A x2
- LCD port (40pin 0.5 mm FPC connector)
- MIPI CSI-2 camera port x2 (15pin 1 mm FPC connector)
- HDMI port (supports 4K 30fps output)
- Real-time clock with battery socket
- TF card socket
- Fan header (allows speed adjustment, 5V)
- Power input (5 V)
