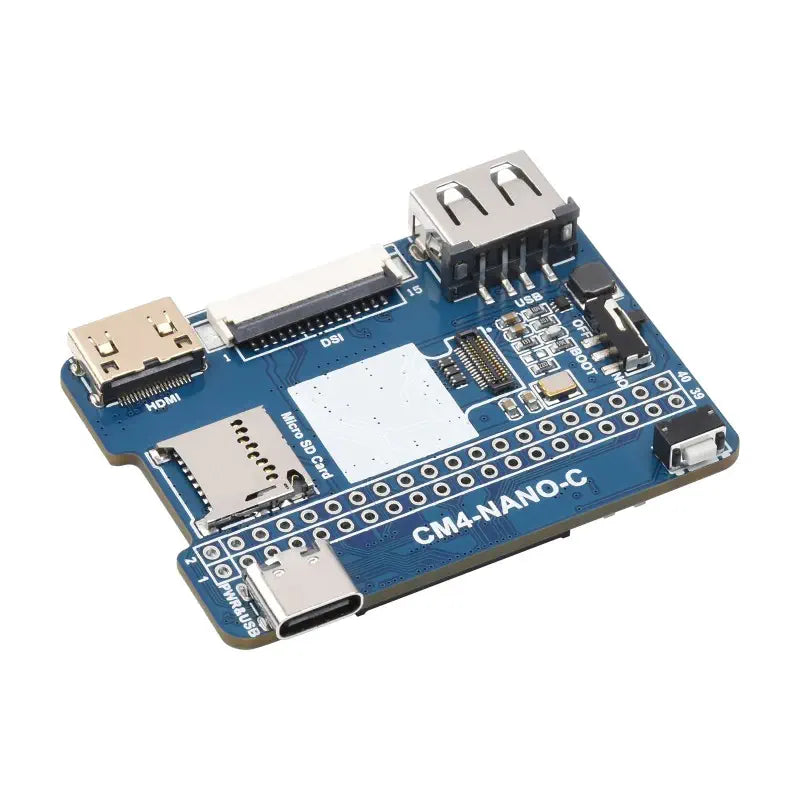

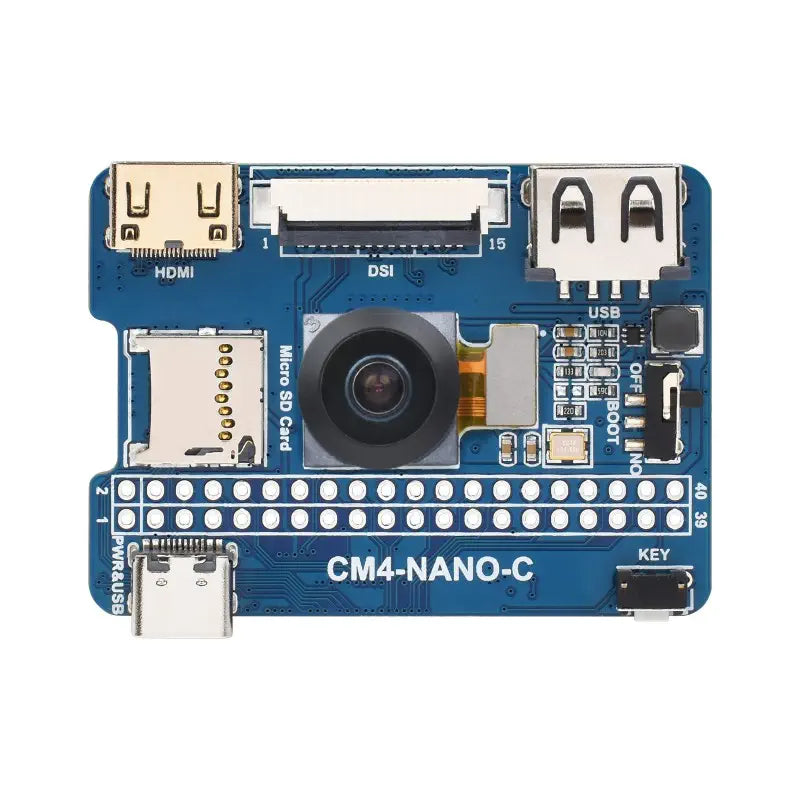

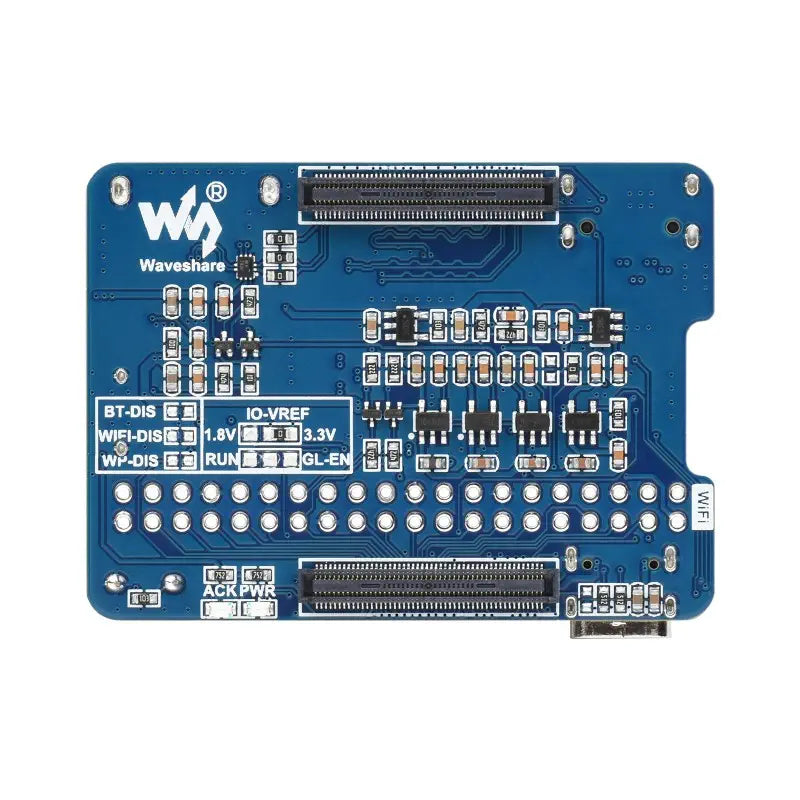

Waveshare Nano Base Board (C) for RPi CM4, Onboard 8MP Camera

• Nano Base Board (C) Onboard 8MP Camera by Waveshare
• Designed for Raspberry Pi CM4 (Not Included)
• Offers a Nano baseboard
• Onboard 8MP camera
• Power Input: 5 V
• USB: USB 2.0 Type-A port

The Waveshare Nano Base Board (C) for RPi CM4, Onboard 8MP Camera is a baseboard that can be used with Raspberry Pi Compute Module 4. Although it is tiny, it can bring out the interface of Raspberry Pi Compute Module 4 with an onboard camera.

Providing 5V 2A for CM4 to ensure that it is in normal use. Otherwise, there may be problems such as automatic shutdown, frequency reduction, and so on. The user key is connected to GPIO21 and pulled up to GPIO_VREF by R16 (10K). When the key is not pressed, GPIO21 is pulled high by default when the key is pressed, the level of GPIO21 will be pulled down.
