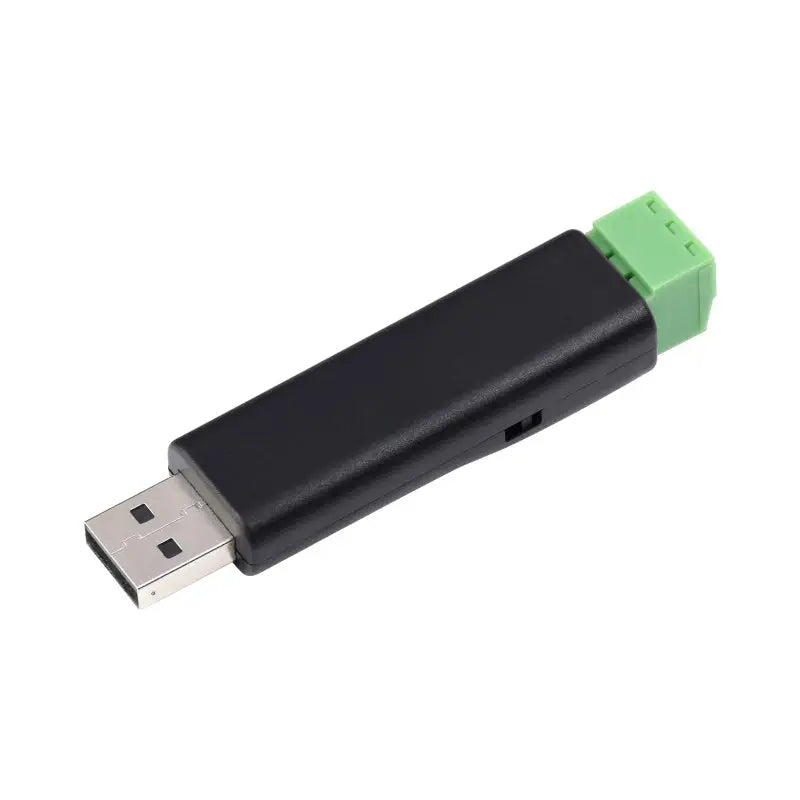

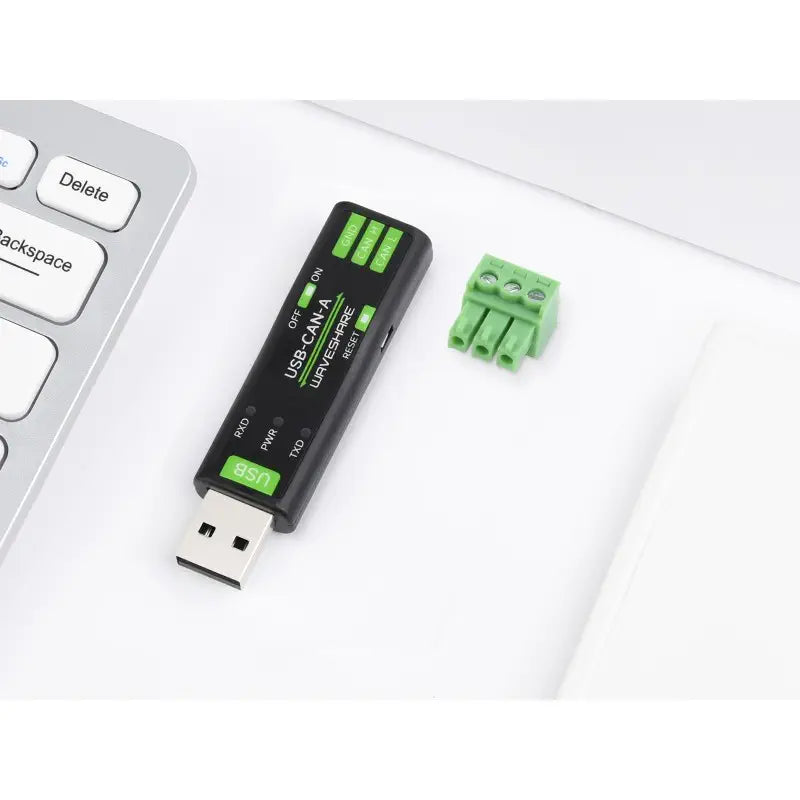

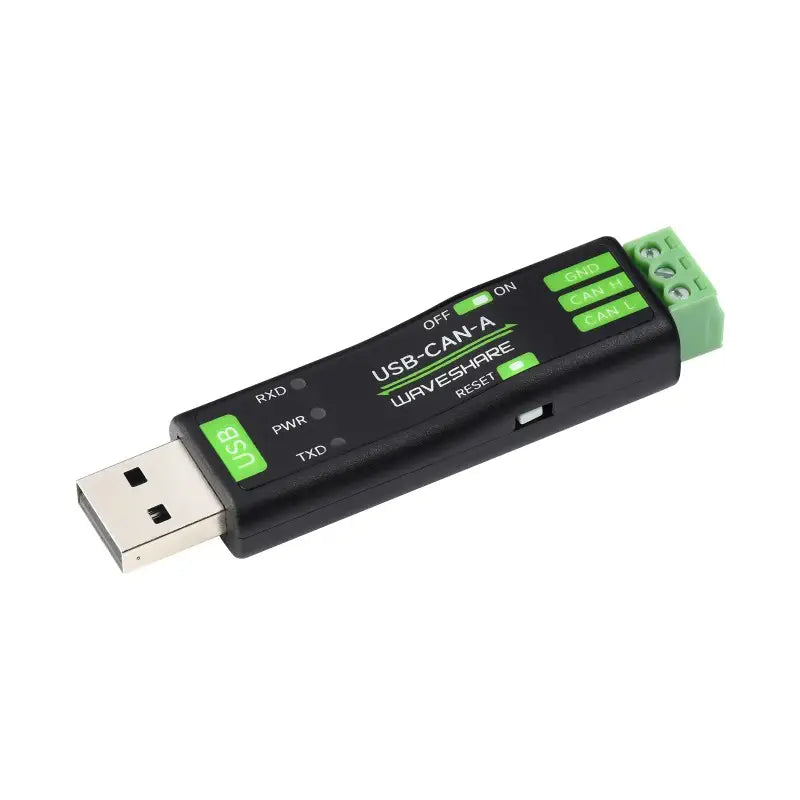

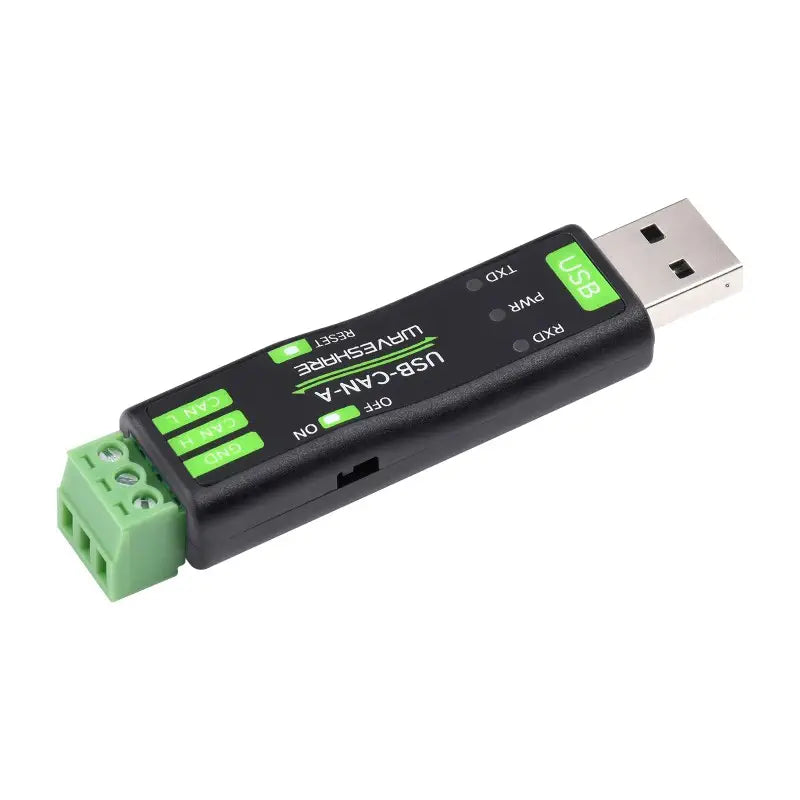

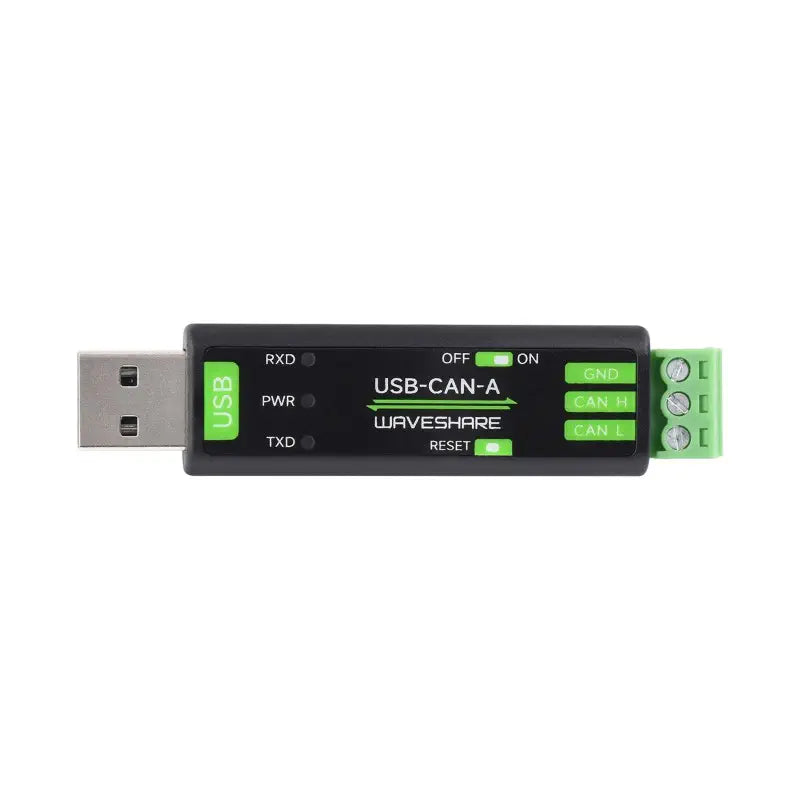

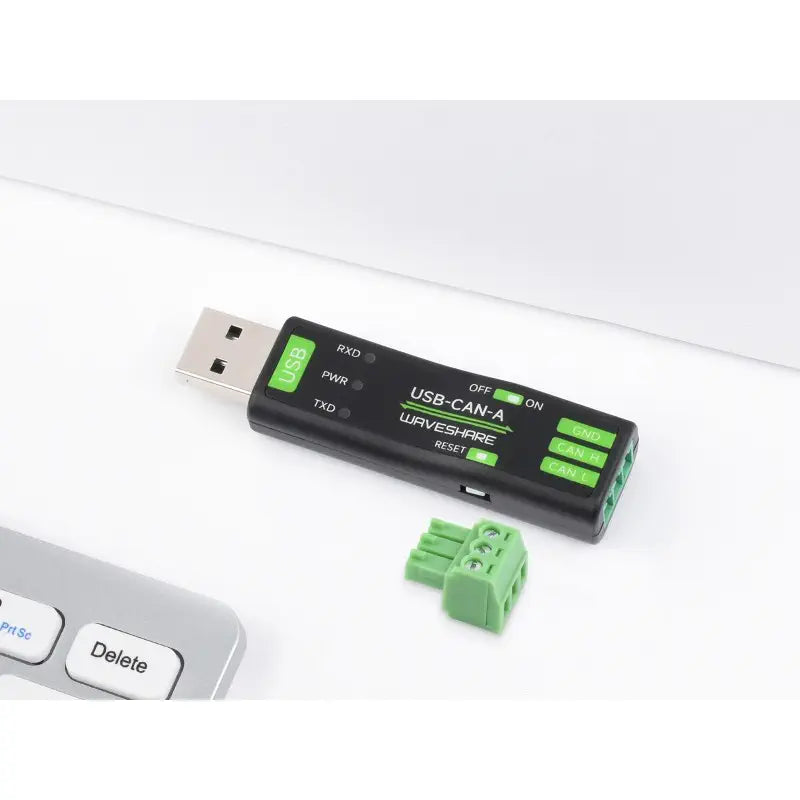

Waveshare USB to CAN Adapter Model A, STM32 Solution, Multiple Modes

• 1x USB-CAN-A
• 1x USB Cable (approximately 1.5m)
• 1x Screwdriver

• 69.16 x 18.36 mm (L x W)

Website

• Waveshare USB to CAN Adapter Model A, STM32 Solution, Multiple Modes – Wiki

• Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
• CAN baud rate is configurable in the range of 5 Kbps – 1 Mbps
• Supports 4 working modes: normal mode, loopback mode, silent mode, and silent loopback mode
• Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly, and cyclic sending
• Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID or specify an ID to automatically answer the configured data
• Data can be saved as TXT or Excel
• Supports CAN bus detection for status checking
• Sending/receiving CAN data with a time scale allows sequentially displaying
• Baudrate of the USB virtual COM port is configurable in the range of 9600 ~2000000 bps (2000000 bps by default)
• Supports setting working parameters by configuration software or serial command, which can be saved after powering off
• Adopts STM32 chip solution, ensuring stable and reliable communication
• Onboard TVS (Transient Voltage Suppressor) effectively suppresses surge voltage and transient spike voltage in the circuit
• Comes with master computer software for the Windows system, making it easy to use
• Easy secondary development, just need to modify the sending and receiving commands
• Weight: 8 g
